Name: KTM40-X Linear Motor
Brand: Linear Module_PPU Robot Arm_Linear Guide _Electric Cylinder_Precision Conveyor Systems Manufacturer_KNK Technology
Availability: InStock
Rating: 5 (1 reviews)

Description
About KNK

Optimized Actuation Solution for Automation Engineers
The KTM40-X linear motor actuator is tailored for engineers and automation professionals requiring compact, maintenance-friendly precision linear guide solutions. Its built-in motor eliminates external couplings, reducing mechanical complexity and potential failure points. The embedded design enables multiple sliders to be controlled independently along a configurable linear motion guide rail, accommodating variable track lengths without performance loss. This solution is well suited for OEMs and system integrators seeking reliable, space-efficient motion components that support flexible configurations while minimizing maintenance overhead.

Advanced Technical Features Ensure Exceptional Precision
This precision linear guide employs an embedded dual-rail magnetic levitation system that removes the need for mechanical transmission, consequently reducing friction and mechanical wear. The KTM40-X supports excellent heat dissipation, enhancing service life and operational stability under continuous use. Its modular motor actuator design offers scalable magnetic track lengths to fit diverse system requirements, making it adaptable for extremely short or long travel applications. The absence of mechanical couplings contributes to greater efficiency and energy savings, supporting demanding industrial environments where precision and durability are critical.

Versatile Integration Across Industrial Automation Platforms

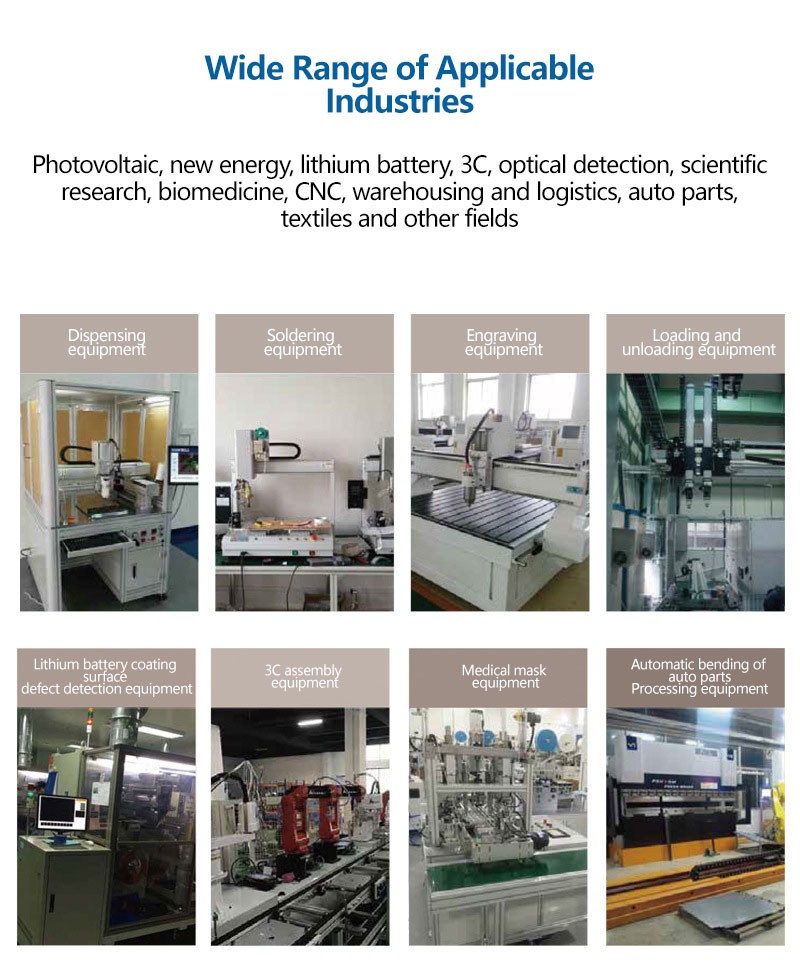

Designed by a leading linear motor manufacturer, the KTM40-X is applicable across multiple industrial domains such as 3D printing, laser equipment, packaging automation, and laboratory testing rigs. Its capability for independent multi-slider control enables complex motion profiles critical in high-precision assembly lines and prototyping workflows. The linear motion guide rail’s modularity facilitates seamless integration into existing systems, optimizing production throughput while reducing downtime. This product supports automation setups that demand compact design, energy efficiency, and reliable, high-precision positioning to meet rigorous manufacturing standards.

Product Advantages

Robust Modular Design with Streamlined Integration

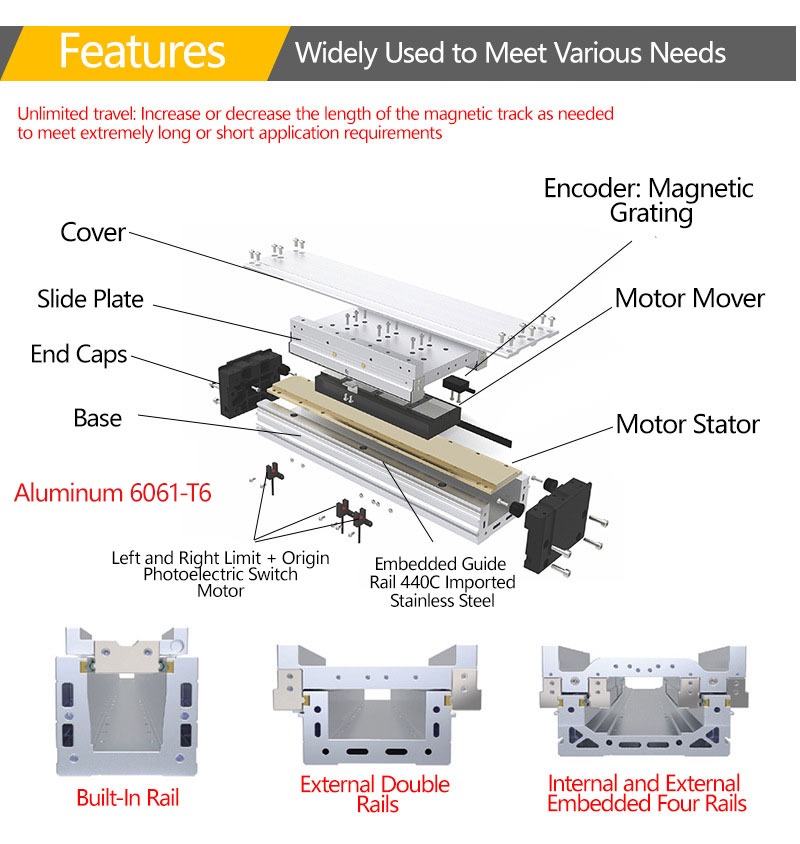

The KTM40-X features a structurally optimized embedded dual-rail system that integrates the linear motor actuator directly within the motion guide rail. This compact design eliminates external motors and couplings, reducing the number of external components required and simplifying system assembly. The modular magnetic track can be precisely adjusted in length, allowing scalable deployment without sacrificing linear guide rail precision. This design approach reduces assembly complexity, lowers manufacturing costs, and accelerates delivery times, offering system designers a flexible yet robust motion solution tailored for varied automation needs.

Superior Operational Performance Promoting Longevity and Efficiency
By eliminating mechanical transmission components, the KTM40-X significantly reduces friction and wear, enhancing reliability and lowering maintenance requirements in demanding operational environments. The embedded motor actuator provides smooth, high-dynamic responsiveness with consistent precision linear guide accuracy. Its efficient heat dissipation supports continuous high-load operation while preserving motor longevity. This product empowers users to achieve precise linear motion control with reduced operational disruptions and improved overall equipment effectiveness, establishing measurable improvement in performance and total cost of ownership.

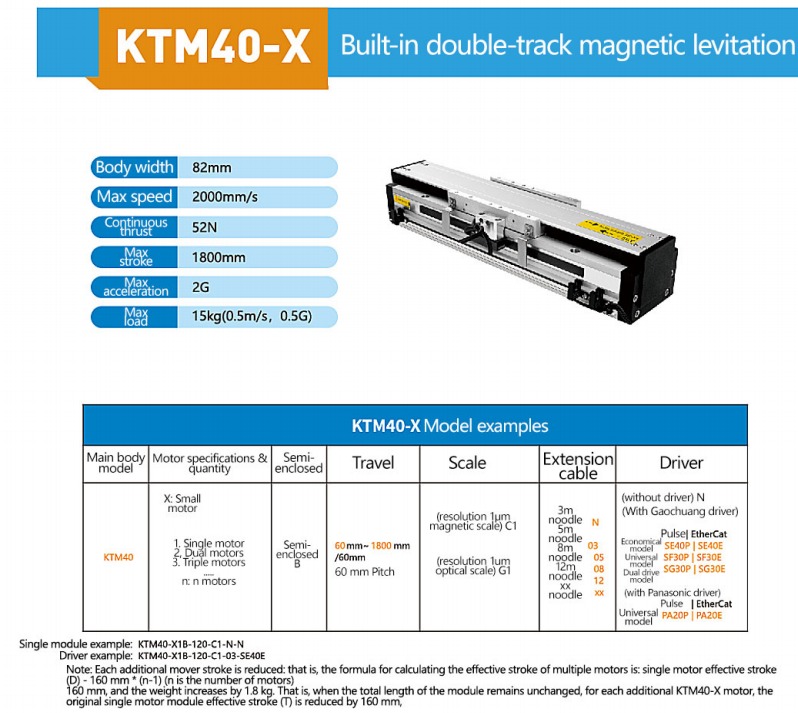

KTM40-X linear motor module

Use Scenarios

Application in Compact Automated Test Rigs
In laboratory and small-scale prototype environments where space is constrained, the KTM40-X linear motor actuator plays a key role providing precise linear positioning with minimal footprint. It enables independent control of multiple sliders along the linear motion guide rail, facilitating simultaneous multi-axis testing or measurements. The design’s minimal friction and modular track length allow test engineers to customize setups for varied experimental parameters while ensuring reproducible data integrity. Its integration-ready form factor streamlines automation bench configurations, prioritizing accuracy and system flexibility essential for iterative prototyping phases.

Role in High-Precision Industrial Packaging Automation
Within high-throughput packaging lines, the KTM40-X precision linear guide delivers efficient and reliable actuation to support product handling and positioning tasks. The embedded motor reduces mechanical complexity and maintenance downtime, critical for maintaining continuous operation during demanding packaging cycles. Independent multi-slider control on the linear motion guide rail allows for coordinated product movement and sorting, optimizing workflow synchronization with conveyor systems. This improves operational consistency and throughput, meeting stringent industrial automation standards for precision and durability.

FAQ

What materials are used in the construction of the KTM40-X linear motor?
While the detailed materials are not specified, the KTM40-X's design emphasizes durability and high precision. KNK Technology uses quality components suited for industrial automation, ensuring that the embedded dual-rail linear motor performs reliably under continuous operation in demanding environments.

Can the KTM40-X linear motor be customized to fit specific project dimensions?
Yes, the KTM40-X features a modular design where the magnetic track length is extendable or shorten-able. This adaptability supports different module sizes, making the linear motion guide rail configurable to specific space and application requirements, providing flexible solutions for diverse automation setups.

What support does KNK Technology offer for installation and system integration?
KNK Technology provides comprehensive support, including technical consultation and guidance throughout installation and integration. With expertise in precision linear guides and embedded motor systems, they ensure smooth commissioning and optimal operation for industrial applications, backed by professional after-sales service.

How does the KTM40-X linear motor reduce maintenance requirements?
The KTM40-X eliminates mechanical transmission and couplings, minimizing friction and wear on parts. This reduces failure points and improves heat dissipation, resulting in higher reliability and longer service life for the linear motor actuator, which means less frequent maintenance and lower downtime. linear motor module

FAQ

1.Why are you choose us?
KNK is a Hi-tech enterprise specializing in linear modules, linear rails, industrial manipulators, etc., integrating R&D,production and sales, "Specialized and New Enterprise"

2.What can you purchase from us?
A one-stop procurement platform for automation products, including linear modules, guide rails, circular line modules, linear motors, PPU robotic arms, electric push cylinders, etc.

3.In Which Industries Can our Product be Applied?
All industries of industrial automation equipment, such as 3D printing, food packaging, dispensing machines, conveying and feeding, laser equipment, industrial automation, vending machines, etc.

4.Customization Process?
Consult customer service, determine parameters, communicate quotations, refine communication, confirm drawing plans, confirm production, product testing, shipping acceptance, installation guidance, after-sales service.

5.How About the Price?
Because most products are customized, the final quotation is determined based on the complete description, size, material,quantity of the product you need.

KNK Technology a high-tech enterprise specializing in the R D, production, sales, and service of chain oval conveyor systems, linear modules, electric cylinders, PPU cam pick and place units, gear rack linear modules, linear motor modules, and linear guides.KNK insists on the business philosophy ofcustomer-centric, market-oriented, and technology-supported.

Supports specifying logistics and packaging methods
