Compact Linear Motion Solution for Precision Applications
The KTM40-D Linear Motor caters to system integrators and engineers seeking a high-precision, compact linear actuator module. As a self-contained unit, it eliminates the dependence on external motors or transmission elements, simplifying assembly and reducing points of failure. The product's capability for independent control of multiple sliders enables complex motion mapping within a unified platform. Its modular magnetic linear guide rail allows system planners to customize track lengths, addressing varied application footprints from tightly constrained installations to extended movement zones, making it ideal for advanced automation system designs.

Advanced Technical Design for Reliable Linear Performance

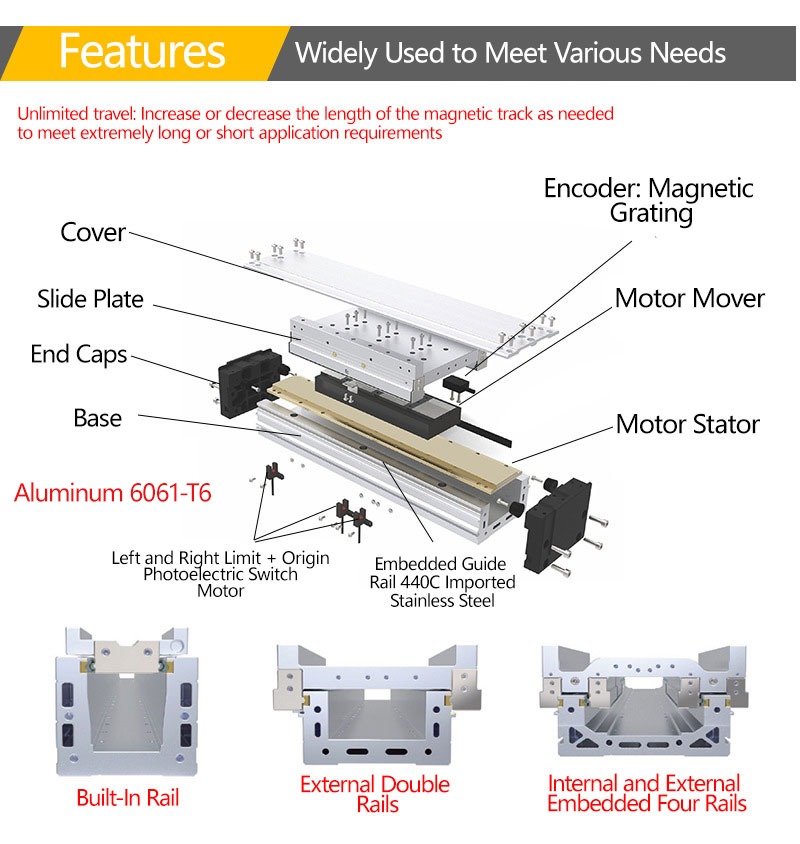

Featuring an embedded dual-rail magnetic levitation configuration, the KTM40-D reduces mechanical friction significantly while enhancing heat dissipation during operation. The built-in motor design means no mechanical couplings or transmissions are necessary, thus improving system durability. With precise positioning capabilities supported by the precision linear guide architecture, the module offers repeatability and smooth motion control under varying load conditions. This adaptability, combined with magnetic track scalability, supports fine-tuned control needed for demanding measurement and inspection stages or research applications requiring exact linear displacement parameters.

Integration in Automation and Testing Environments
Industries focused on automation and laboratory-scale precision testing benefit from this module’s design. Its compact footprint aligns well with custom multi-slider motion platforms for complex automated sequences used in assembly, inspection, or prototype development. The scalable magnetic track and the linear motion guide rail support configuring test rigs of variable lengths without compromising precision. Additionally, educational environments and R&D labs leverage the KTM40-D for training on linear motor actuators due to its integrated drive concept and maintenance-friendly design, reinforcing its applicability in diverse industrial workflows.

Product Advantages

Innovative Structural Design Optimizes System Integration
The KTM40-D’s design integrates a compact built-in motor within a linear module, eliminating the requirement for external drives or mechanical transmissions. This results in fewer moving parts and a system architecture based on a magnetic linear guide rail that supports scalable length adjustments. Such modularity allows straightforward adaptation to different machine sizes and configurations, enhancing OEM flexibility from initial design through deployment. The dual-rail magnetic levitation system decreases wear and friction, while the built-in motor architecture simplifies cabling and control complexity, representing a significant advancement for linear motor manufacturers targeting compact, high-performance solutions.

Enhanced Performance and Operational Versatility
With magnetic levitation significantly reducing mechanical resistance, the KTM40-D delivers highly precise motion with improved heat dissipation, resulting in consistent repeatability and lower maintenance demands. Independent slider control permits simultaneous complex motion tasks on a single platform, increasing throughput without compromising accuracy. The system’s scalability combined with its self-contained linear motor actuator reduces integration time for bespoke automation projects, and guarantees spatial efficiency. These performance benefits translate into increased productivity and reliability across applications requiring exact positioning and dynamic response.

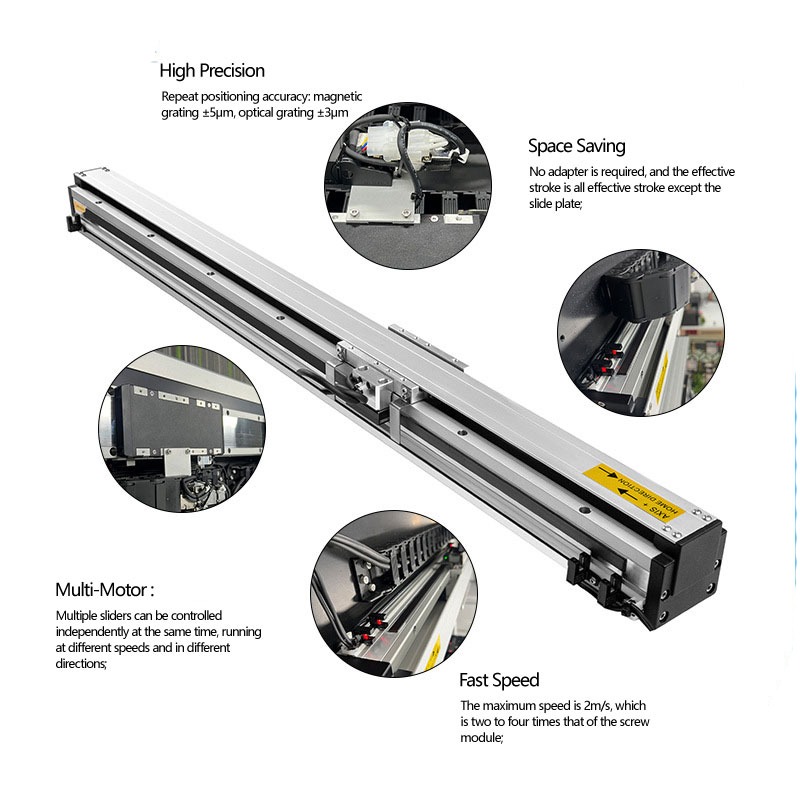

KTM40-D linear motor module

Use Scenarios

Precision Automation in Research and Development Facilities
In R&D environments focused on innovative automation concepts or prototyping, the KTM40-D Linear Motor is employed to furnish highly precise, low-friction linear positioning systems. Its modular magnetic linear guide rail enables engineers to configure track lengths that suit varying experimental setups. The integrated built-in motor and independent slider controls facilitate complex motion profiles essential for testing sensors, algorithms, and equipment in compact spatial constraints. The solution’s ability to provide fine-tuned, scalable linear actuation supports rapid iteration and validation cycles, critical for research productivity and integration with broader automation platforms or laboratory information management systems.

Application in Automated Assembly and Inspection Lines
The KTM40-D serves as a critical component in small-scale automated assembly or inspection lines within electronics or precision manufacturing industries. Its compact linear motor actuator delivers precise repeatable movements essential for pick-and-place operations or quality inspection stations that require rapid repositioning. The linear motion guide rail’s frictionless magnetic levitation mechanism ensures minimal wear and extended service life in continuous operational environments. Its scalable track design supports customization to specific line lengths or workstation footprints, enabling seamless integration with control architectures while maintaining system throughput and accuracy standards required in high-mix, low-volume production settings.

FAQ

What materials and components are used in the KTM40-D linear motor?
While specific materials are not listed, the KTM40-D linear motor features embedded dual-rail magnetic levitation and integrated drive components that ensure low friction and durable performance. This design supports precise motion relevant for precision linear guide applications.

Can the KTM40-D linear motor be customized to fit specific lengths or configurations?
Yes, the KTM40-D includes a modular magnetic track that can be extended or shortened to accommodate various application sizes. This scalability, combined with independent slider control, enables flexible setups for diverse industrial processes requiring linear motor actuators.

What installation support is available for integrating the KTM40-D linear motor into automation systems?
KNK Technology offers one-stop engineering services, including installation guidance and after-sales support. Our team assists with system integration, ensuring compatibility with existing setups that use linear motion guide rail components for smooth automation deployment.

How should maintenance be handled to ensure long-term performance of the KTM40-D linear motor?
Due to its magnetic levitation design, the KTM40-D minimizes mechanical friction and wear. Regular system checks and keeping the magnetic track clean are recommended to maintain positioning accuracy and operational reliability typical of a high-quality linear motion guide rail system. linear motor module
