EDA60 Electric Cylinder

Automation Positioning for OEMs and Integrators

The EDA60 electric cylinder is engineered for machine builders, automation integrators, and maintenance teams that need repeatable linear positioning with straightforward mechanical adaptation. As an industrial-grade electric cylinder actuator, it supports upgrade paths from pneumatic drives where tighter control, cleaner operation, and simplified diagnostics are required. The dual-thread concept (internal and external threads) helps standardize mounting across different frames, brackets, and retrofit plates, reducing redesign effort during line modifications. For space-restricted equipment, the fold-back configuration shortens overall length to fit compact stations, while the straight-line option supports longer travel when envelope control is critical. Our company provides selection guidance, interface recommendations, and configuration support to align performance with cycle time, load profile, and installation constraints.

Material, Surface Hardness, and Configurable Mechanics

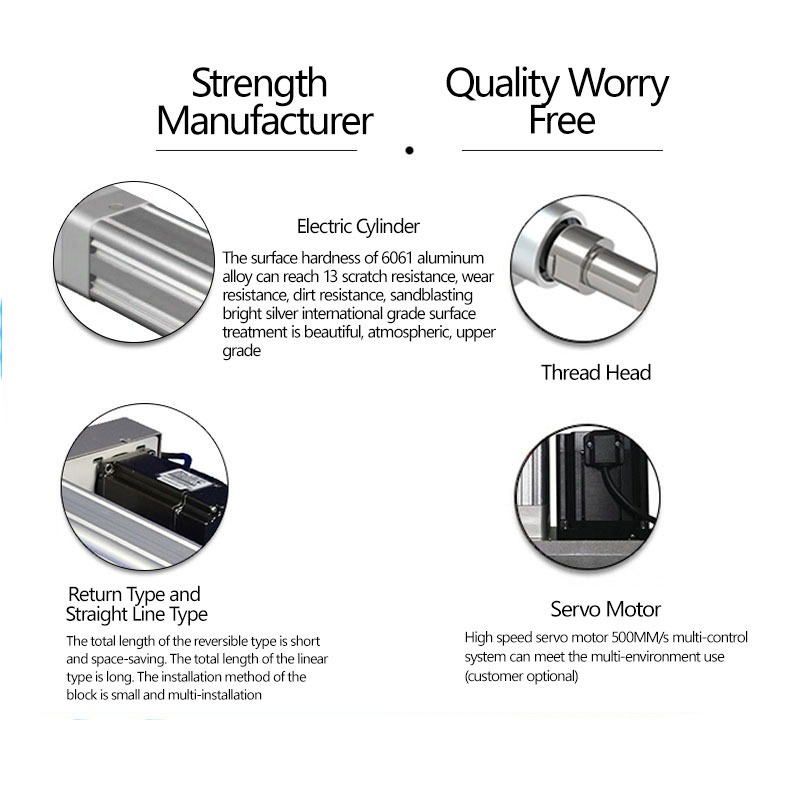

Built from 6061 aluminum alloy, the EDA60 resists scratch, wear, and contamination, helping preserve alignment accuracy in high-utilization equipment. With surface hardness up to 13, the cylinder body is optimized for long service life under frequent handling and exposure to shop-floor debris. The platform can be configured as a servo electric cylinder for applications requiring closed-loop positioning and stable motion profiles, while maintaining a compact mechanical footprint. Installers can choose threaded and external thread styles to match site-specific coupling methods, and multiple mounting approaches support diverse orientations. Where higher force margins are required, the design philosophy aligns with heavy duty electric cylinder expectations through robust construction and contamination tolerance, improving reliability across extended production runs.

Practical Value in Production Lines and Precision Machinery

In assembly automation, conveying, and test fixtures, the EDA60 electric linear actuator enables consistent stroke control for pressing, indexing, clamping, and transfer tasks where repeatability directly impacts yield. Its compact fold-back layout supports dense workstation layouts, and the straight-line variant suits longer travel on packaging or material-handling modules. As an electric cylinder actuator, it integrates cleanly with PLC-based systems through commonly used motion controllers and can be specified to match existing mechanical interfaces, supporting phased upgrades with minimal downtime. Typical value drivers include reduced air infrastructure, improved process traceability, and lower maintenance from wear- and dirt-resistant surfaces. For equipment standardization programs, the EDA60 electric cylinder also helps unify mounting and service procedures across multiple machine types.

Compact Architecture and Installation Flexibility

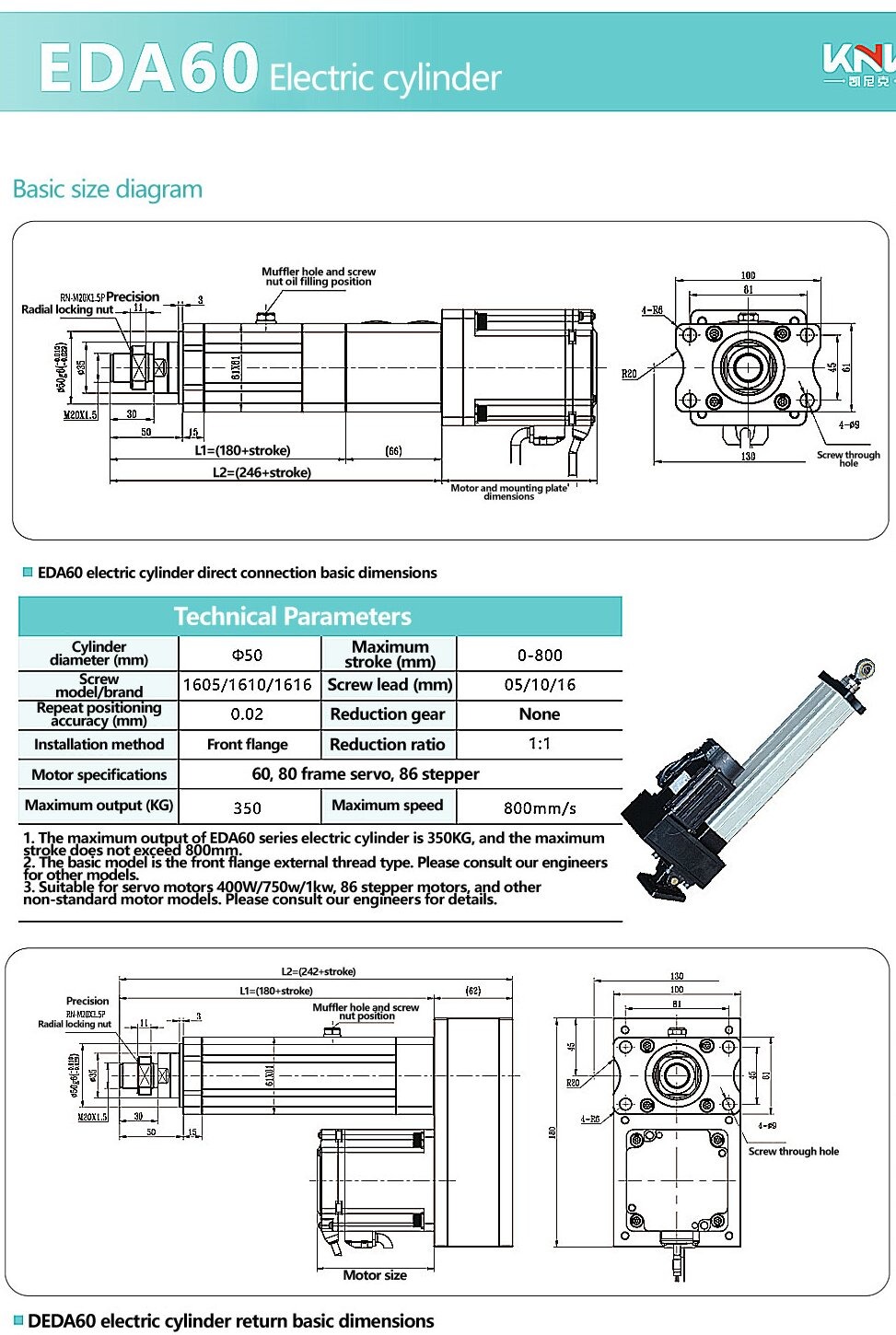

The EDA60 electric cylinder is structured around a dual-thread installation concept that supports both internal and external thread options, making it easier to align with varied brackets, clevises, and retrofit adapters. The fold-back configuration reduces overall length for tight build spaces, while the straight-line configuration provides longer stroke potential with a smaller cylinder envelope, supporting modular machine layouts. Multiple mounting methods allow the same electric cylinder actuator family to be deployed in horizontal, vertical, or angled orientations without extensive redesign. This mechanical versatility supports faster engineering change cycles and simplifies spares management. For demanding environments, the construction approach aligns with heavy duty electric cylinder requirements by emphasizing durable materials and contamination tolerance rather than delicate external housings.

Operational Reliability and Control-Oriented Value

For production users focused on uptime and consistent output, the EDA60 electric linear actuator delivers stable motion behavior and predictable maintenance intervals due to its wear-, scratch-, and dirt-resistant build. When configured as a servo electric cylinder, it supports precise positioning, smooth velocity profiles, and repeatable end-point control that can reduce rework in pressing, locating, and inspection steps. The 6061 aluminum body with surface hardness up to 13 helps protect against handling damage during installation and routine servicing. As an electric cylinder, it also supports cleaner operation than pneumatic alternatives, helping facilities reduce air-leak losses and improve workstation cleanliness, while maintaining straightforward integration into existing control and safety architectures.

Assembly Automation Pressing and Indexing Stations

In discrete manufacturing cells for electronics, automotive subassemblies, or small appliance components, the EDA60 electric cylinder actuator is used to drive pressing, locating, and controlled insertion where repeatable end positions are essential for quality control. The actuator’s compact fold-back structure helps fit into guarded stations with limited clearance, while the straight-line option supports longer indexing travel on multi-step fixtures. As a servo electric cylinder, it can be paired with a motion controller to coordinate position and speed with sensors, interlocks, and torque/force monitoring, supporting traceable process parameters. The wear- and dirt-resistant construction reduces sensitivity to particulate typical of assembly environments, and the electric cylinder format simplifies integration with PLC logic for cycle timing, alarms, and maintenance counters.

Retrofit Replacement for Pneumatic Drives in Packaging Lines

In packaging and automated feeding systems where pneumatic cylinders are commonly used for pusher, stopper, and diverter actions, the EDA60 electric linear actuator provides an electrified retrofit path that improves adjustability without changing the entire machine concept. Dual-thread mounting options help match existing mechanical interfaces, reducing fabrication time during upgrades. As an electric cylinder actuator, it integrates with line controllers to enable recipe-based stroke settings, synchronized motion with conveyors, and controlled acceleration to limit product disturbance. Where stronger margins are needed for high-speed lines or heavier cartons, the design approach is consistent with heavy duty electric cylinder expectations through robust alloy construction and contamination tolerance. This supports smoother commissioning, reduced air-system dependency, and more consistent operation across varying product formats.

FAQ

1.Why are you choose us? KNK is a Hi-tech enterprise specializing in linear modules, linear rails, industrial manipulators, etc., integrating R&D,production and sales, "Specialized and New Enterprise"

2.What can you purchase from us? A one-stop procurement platform for automation products, including linear modules, guide rails, circular line modules, linear motors, PPU robotic arms, electric push cylinders, etc.

3.In Which Industries Can our Product be Applied? All industries of industrial automation equipment, such as 3D printing, food packaging, dispensing machines, conveying and feeding, laser equipment, industrial automation, vending machines, etc.

4.Customization Process? Consult customer service, determine parameters, communicate quotations, refine communication, confirm drawing plans, confirm production, product testing, shipping acceptance, installation guidance, after-sales service.

5.How About the Price? Because most products are customized, the final quotation is determined based on the complete description, size, material,quantity of the product you need.
