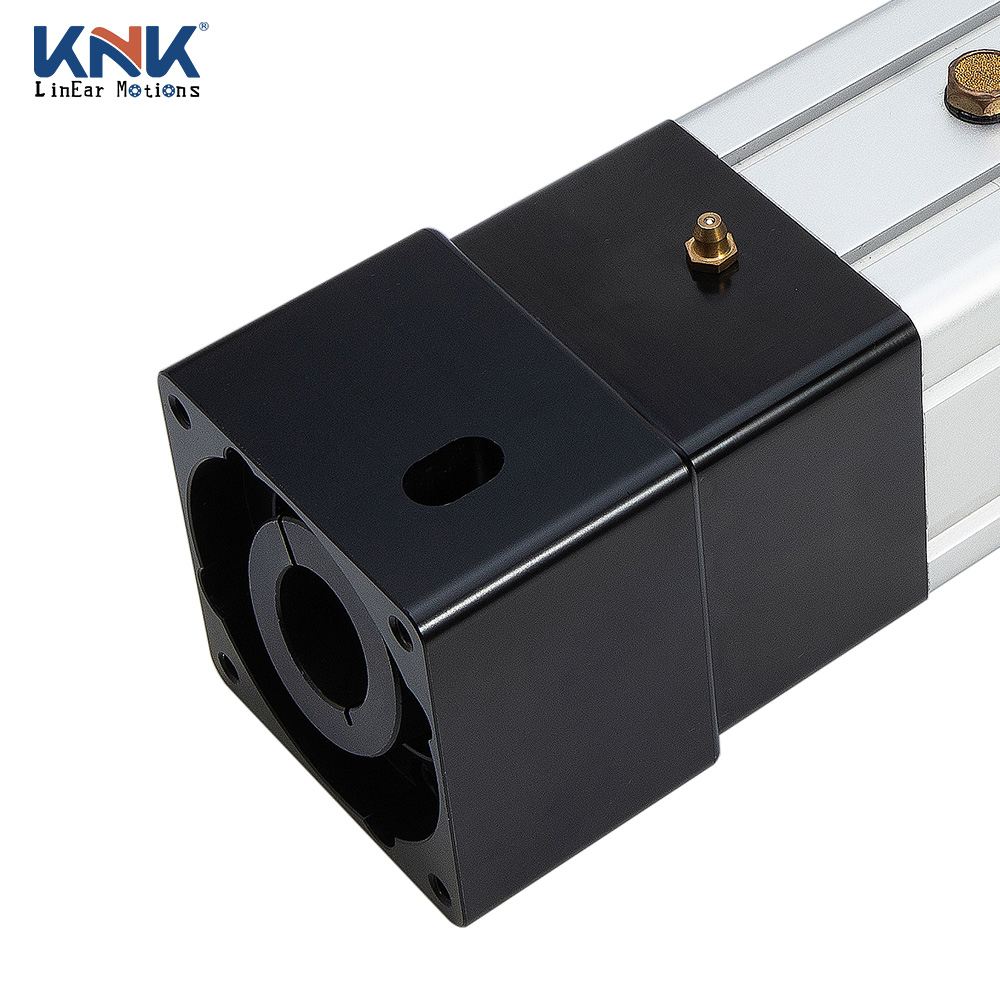

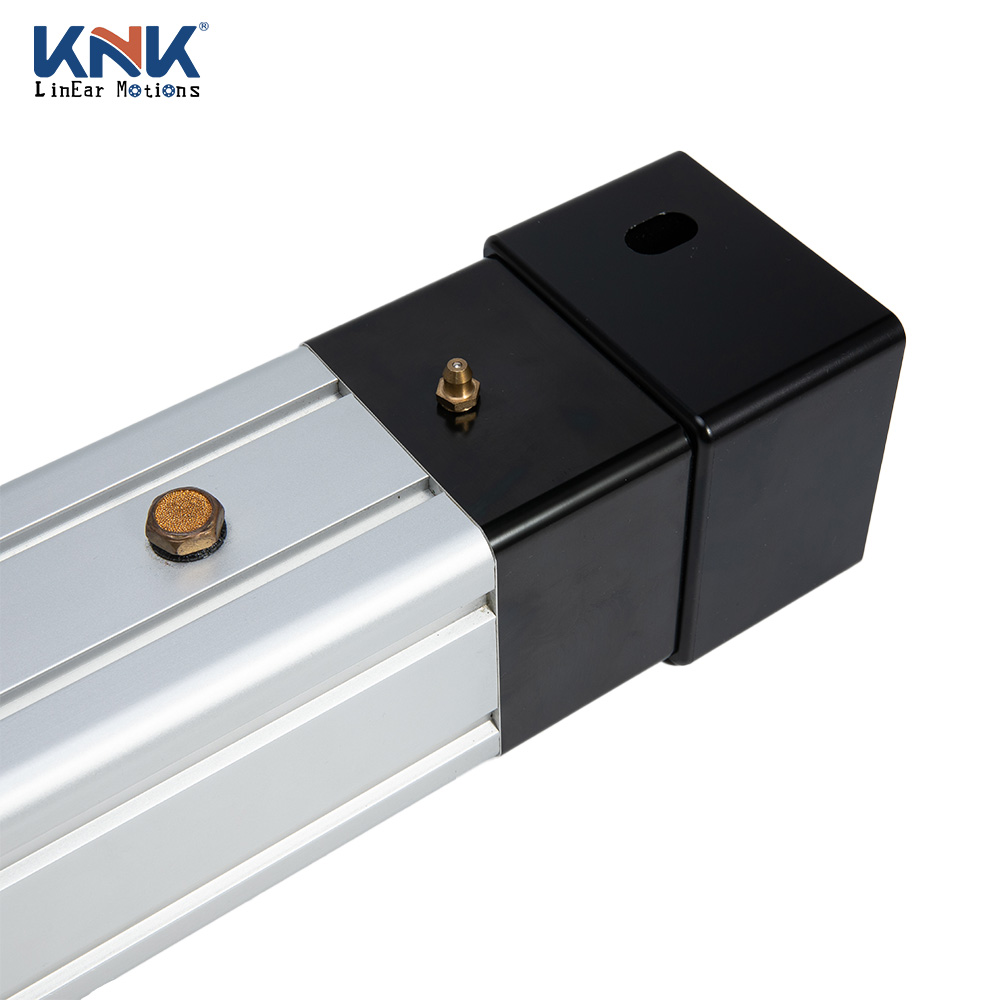

EDA115 Electric Cylinder

Positioning for Precision Automation Integrators

The EDA115 is an industrial-grade electric cylinder engineered for machine builders, automation integrators, and maintenance teams that need controlled thrust in compact assemblies. As an electric linear actuator, it supports servo-driven lifting, pushing, and positioning tasks where repeatability and clean linear motion are required. We designed it for production environments that cannot tolerate frequent downtime: the housing material selection and surface treatment target long service intervals in dusty, high-cycle stations. With fold-back and straight-line variants, the same platform can be specified for tight envelopes or longer strokes, reducing redesign effort across similar machines while keeping installation practices consistent for on-site commissioning.

Measured Durability and Installation-Centric Mechanics

Built around a 6061 aluminum alloy body, the EDA115 electric cylinder actuator delivers strong scratch, wear, and dirt resistance, with surface hardness specified up to 13 to improve long-term protection in industrial handling. For mounting flexibility, it provides both threaded and external thread configurations, simplifying adaptation to brackets, end fixtures, and legacy interfaces. The fold-back configuration reduces overall length for space-constrained layouts, while the straight-line structure supports longer effective travel with a smaller cylinder footprint. As a servo electric cylinder platform, it is intended to pair with servo control architectures to support precise motion profiles, smooth speed transitions, and accurate end positioning.

Industrial Value in High-Load, High-Utilization Stations

In real production lines, the EDA115 functions as a heavy duty electric cylinder for operations such as press assists, fixturing actuation, lift tables, and guided transfer stops where stable thrust and repeatable positioning protect both throughput and quality. As an electric linear actuator, it helps standardize linear motion modules across multiple work cells, supporting faster spares management and reduced engineering time during line expansions. Its resistance to dirt accumulation and surface wear helps lower unplanned maintenance in abrasive or high-particulate processes. We support parameter-based customization and integration guidance, enabling the actuator to be specified around stroke, mounting constraints, and application duty expectations.

Structural and Integration Advantages for Machine Design

The EDA115 electric cylinder actuator is structured to simplify mechanical integration: dual-thread options (threaded and external threads) allow designers to match different end connections without custom adapters, improving assembly repeatability. The availability of fold-back and straight-line layouts lets teams choose between minimal overall length or extended stroke reach while maintaining a consistent interface philosophy. Using 6061 aluminum alloy provides a favorable strength-to-weight balance for moving axes and gantries, while the hardened surface helps maintain fit and finish under frequent handling. As an electric cylinder solution, it supports multiple mounting methods to suit varied site conditions and fixture geometries, reducing rework during installation.

Operational Performance, Maintainability, and User Value

In continuous operation, the EDA115 behaves as a stable servo electric cylinder suited to controlled thrust applications where motion quality impacts product tolerances and cycle time. The wear- and dirt-resistant exterior reduces performance degradation caused by contamination, helping maintenance teams keep intervals predictable and minimizing cleaning-related stoppages. For OEMs and end users, a standardized heavy duty electric cylinder platform improves lifecycle cost control by limiting part variety and easing replacement planning. With flexible mounting and compact variants, the actuator can be deployed closer to the point of action, shortening linkages and improving stiffness—supporting better positioning consistency and more reliable process outcomes across shifts.

Compact Automation Cells with Tight Envelope Constraints

In space-limited assembly and inspection cells, the EDA115 electric cylinder is commonly installed where tooling, guarding, and sensors leave minimal room for linear actuation hardware. The fold-back configuration allows engineers to achieve required motion while reducing overall actuator length, supporting denser machine layouts without compromising service access. As an electric linear actuator, it can be integrated with servo controllers and PLC motion commands for repeatable clamp, lift, or part-present positioning cycles. Dual-thread mounting options simplify retrofits on existing brackets and help meet internal machine build standards. The hardened, contamination-resistant surface is beneficial in cells that generate debris, supporting stable operation with reduced cleaning interruptions.

Heavy-Load Pushing/Lifting on Production Lines and Fixtures

On high-utilization manufacturing lines, the EDA115 is deployed as a heavy duty electric cylinder for pushing stops, lift assists, and fixture actuation where load stability and repeatability directly affect quality and uptime. In these stations, the actuator’s robust housing and wear-resistant surface help withstand frequent handling, contact risk, and airborne contaminants. As a servo electric cylinder, it supports controlled acceleration and deceleration profiles that reduce shock on tooling, improve positioning accuracy, and help protect mechanical assemblies over long duty cycles. Integration is straightforward within servo-driven architectures: motion setpoints can be coordinated with conveyors, interlocks, and safety circuits to maintain consistent takt time and predictable maintenance planning.
