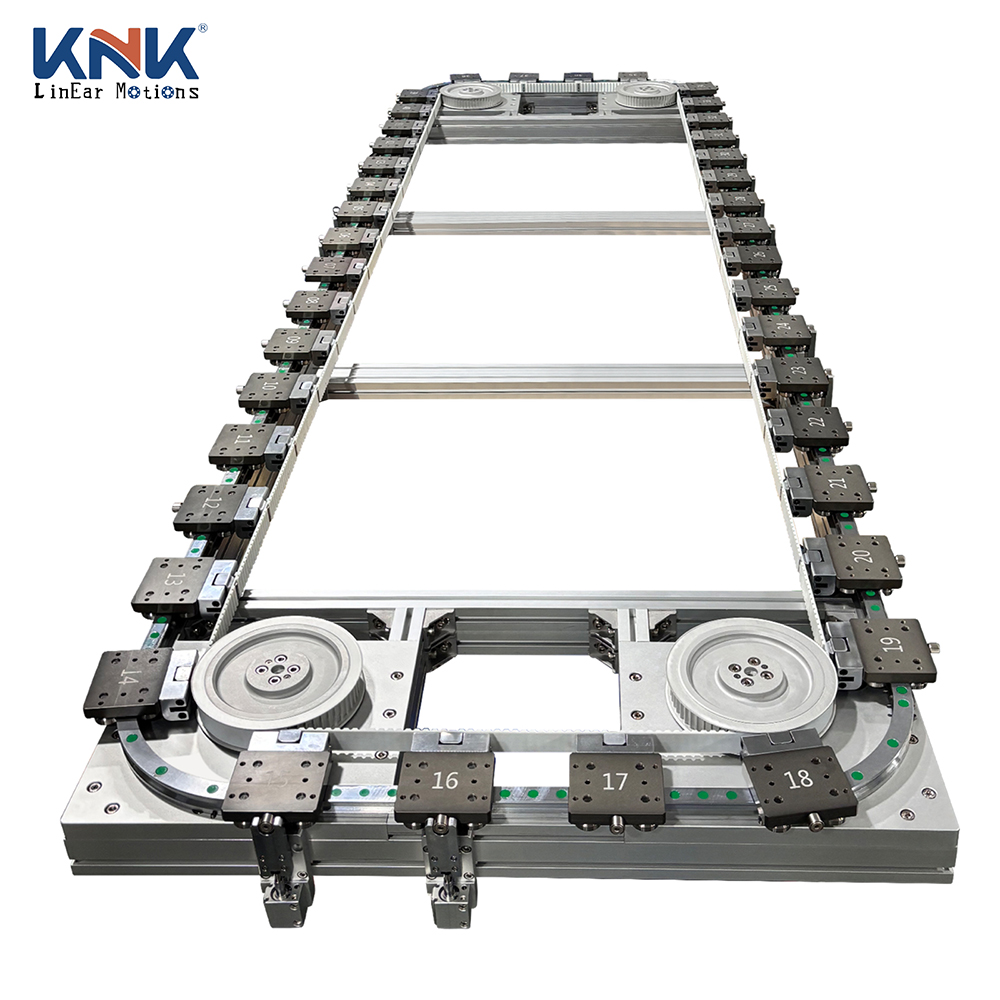

J Series Rectangular Conveyor System

Positioning-Critical Transfer for Automation Teams

Our J Series Rectangular Conveyor System is built for engineers, integrators, and operations teams that require deterministic part handoff plus repeatable stop accuracy on compact footprints. By combining conveyance and indexing into one platform, the precision link conveyor architecture supports precise pick-and-place, fixturing, and station-to-station synchronization without adding external positioners. The rigid frame and controlled conveyor link motion reduce variation caused by cumulative loading and frequent start/stop cycles. For procurement and maintenance planning, the modular format simplifies spares strategy and line expansion, while standardized interfaces help align the system with robots, testers, and vision stations across multi-step assembly workflows.

Measured Speed, Accuracy, and Load Capability

Designed around high-stability indexing conveyor systems, the J Series achieves repeat positioning accuracy up to 0.05 mm, enabling consistent datum control for inspection and assembly processes. Maximum operating speed reaches 1000 mm/s for throughput-focused lines, and the structure maintains rigidity under cumulative loads up to 40 kg to protect motion integrity across long duty cycles. A link type indexing chain mechanism functions as the core link conveyor, while circular guide rail components support smooth linear motion and predictable response during acceleration and deceleration. High-strength materials and a maintenance-free concept reduce adjustment points, helping engineering teams keep performance within specification after installation and during process changes.

Production Value Across High-Precision Manufacturing

In automated assembly and test environments, the J Series supports repeatable positioning where cycle time and traceability matter as much as accuracy. Semiconductor handling, electronics assembly, and metrology stations benefit from stable precision link indexing that keeps parts aligned for probing, dispensing, pressing, or camera verification. As a configurable indexing conveyors platform, it enables rapid layout changes for new products, fixture trials, and pathway validation without redesigning the entire transfer system. The result is fewer integration iterations, smoother station balancing, and more predictable throughput—especially when multiple robots or measurement devices share the same reference points along the conveyor path.

Modular Mechanics That Simplify Line Engineering

The J Series is engineered as a modular rectangular platform that can be configured for different station counts, pitch requirements, and transfer directions while maintaining structural stiffness. Its link type indexing chain and circular guide rails create a controlled motion path, allowing the precision link conveyor layout to deliver accurate stops without adding complex external positioning modules. Standardized modules shorten mechanical design cycles and help integrators scale cells by repeating proven building blocks. With a robust conveyor link structure and maintenance-free design intent, the system reduces the number of wear-prone adjustment interfaces and supports cleaner routing of sensors, tooling, and guarding typical of modern indexing conveyor systems.

Throughput, Uptime, and Predictable Operating Cost

By combining up to 0.05 mm repeat positioning accuracy with speeds up to 1000 mm/s, the J Series supports both precision and takt-time targets in demanding lines. Stable indexing reduces rework and measurement retries, while the rigid build sustains performance under cumulative loads up to 40 kg. The maintenance-free approach lowers scheduled intervention, improving availability and minimizing unplanned stoppages tied to misalignment or re-tensioning common in less rigid transfers. As a link conveyor solution, it integrates cleanly with robots, testers, and PLC motion logic, and the precision link behavior helps teams validate processes faster, reducing commissioning risk and delivering stronger ROI for automation investments.

Semiconductor Assembly with Tight Datum Control

In semiconductor assembly and module build lines, micro-scale placement and inspection depend on consistent part location at every station. The J Series acts as the primary transfer and indexing backbone, moving carriers between dispensing, bonding, curing, and AOI while maintaining repeatable stops for tool-to-part alignment. Using indexing conveyor systems principles with a rigid precision link conveyor mechanism, it supports 0.05 mm repeat positioning accuracy to help meet process capability targets and reduce false rejects in metrology. Integration is straightforward: sensors confirm position, PLCs coordinate station interlocks, and robots pick from known coordinates. The maintenance-free conveyor link design also supports high-uptime operation in clean, controlled environments where unexpected service events disrupt yield.

Automated Fixture Validation and Line Integration Trials

During pathway validation, fixture testing, and new-line demonstration builds, teams need a transport platform that can be reconfigured quickly while preserving known performance limits. The J Series provides a controllable indexing base for verifying end-effector access, clamp timing, and inspection repeatability before full-scale deployment. As indexing conveyors, it delivers stable stops and smooth transitions that make it easier to isolate fixture issues from transfer variability. The link conveyor mechanism and guide rail structure support consistent motion response for commissioning tasks such as cycle-time measurement, vision calibration, and inter-station handshakes. The system plugs into standard automation workflows via I/O, safety circuits, and station-ready signals, while the precision link behavior helps teams document compliance results and lock in production parameters faster.
