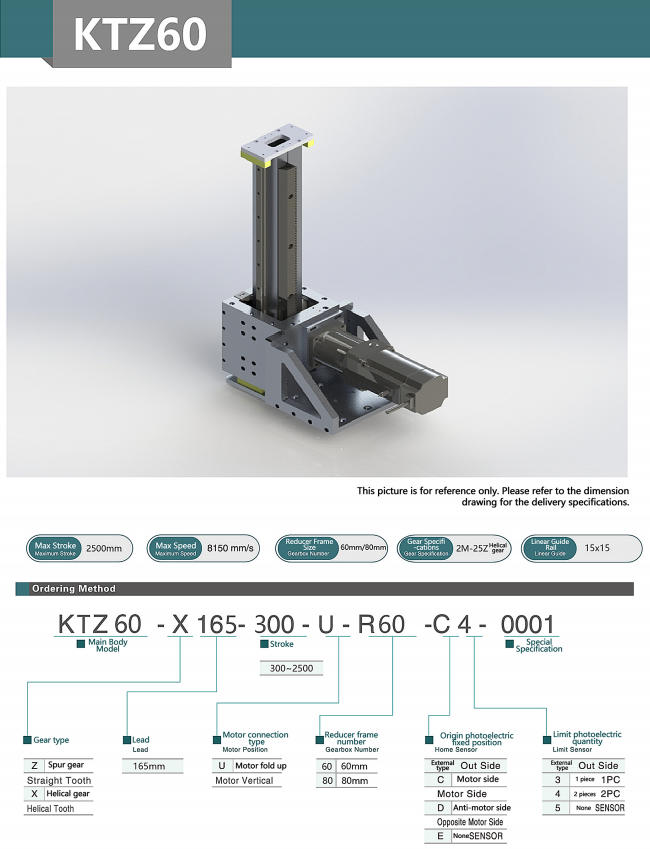

KTZ60 Gear and Rack

Automation Positioning for Heavy-Duty Machinery

Our KTZ60 is built for OEMs, system integrators, and plant engineers who need stable, repeatable linear positioning under load. As a configurable gear rack linear module, it supports long-stroke layouts while keeping mechanical simplicity for maintenance teams. The Rack and Pinion Linear Actuator architecture is well suited to fixtures, pick-and-place axes, and tool handling where rigidity matters more than ultra-fine micron-class accuracy. Procurement teams benefit from a clear specification set and scalable stroke options, while commissioning engineers can integrate the module into existing frames and guarding concepts with minimal redesign. For projects requiring dependable throughput, the KTZ60 functions as an Industrial Linear Module that balances payload capability, installation practicality, and predictable lifecycle service.

Measured Precision and Stroke Flexibility

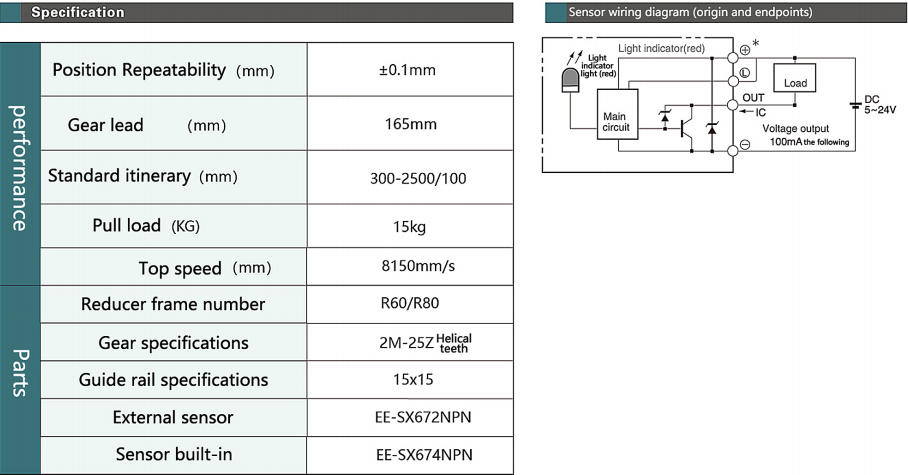

KTZ60 performance is defined by quantifiable metrics that simplify design verification. Position repeatability is specified at 0.1 mm, supporting consistent indexing, loading, and transfer tasks. A 165 mm gear lead is optimized for smooth motion behavior and controllable speed profiles, making the unit a reliable Gear Rack Linear Stage for production equipment. Standard working strokes cover 300–2500 mm, and travel can be configured in 100 mm increments to match machine envelopes without unnecessary oversizing. With a 100 kg pull-load rating, the Gear Rack Linear Actuator configuration handles demanding axial forces while maintaining stable motion. For engineers standardizing parts across platforms, this Rack and Pinion Linear Module format supports repeatable builds and straightforward parameter documentation.

Value in Production Lines and Robotic Integration

In real manufacturing environments, the KTZ60 adds value where linear transfer, positioning, or indexing must remain consistent over long duty cycles. It is commonly deployed as an Industrial Linear Module within automated assembly stations, welding or dispensing cells, and part-handling systems that must keep takt time stable. When used as a Rack and Pinion Linear Actuator, it can drive grippers, carriers, or tooling plates along defined work zones while tolerating higher loads than light-duty belt axes. The Gear Rack Linear Stage approach supports clean mechanical layouts for safety guarding, sensor placement, and cable management. For integrators, the benefit is predictable behavior that simplifies acceptance testing, plus configurable stroke lengths that reduce custom fabrication and accelerate line ramp-up.

Robust Structure Optimized for Integration

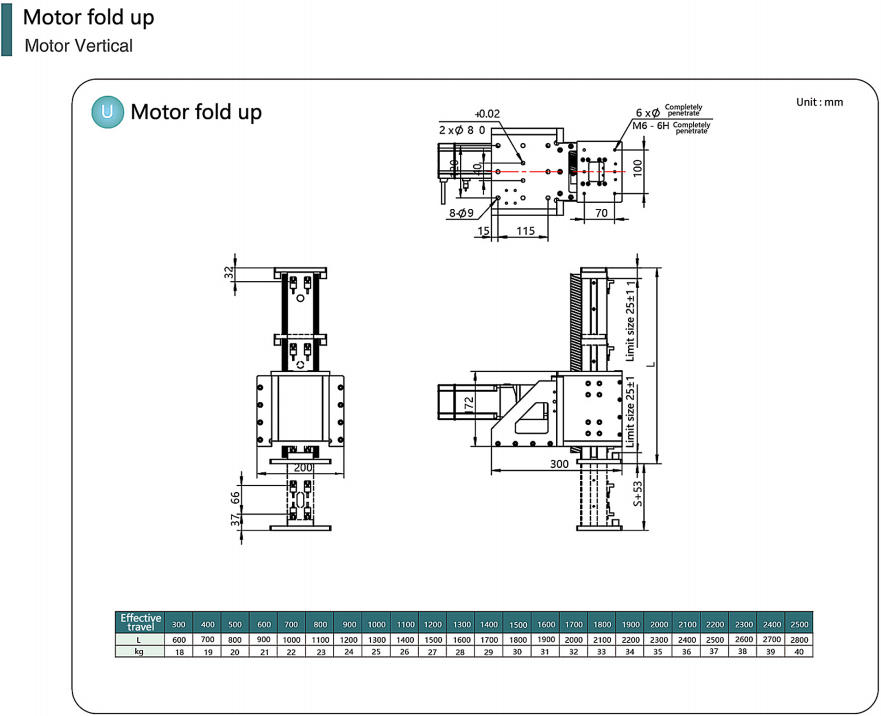

The KTZ60 is engineered around a rigid gear-and-rack drivetrain that supports long strokes without the compliance commonly seen in lighter transmission styles. As a standardized Gear Rack Linear Module, it can be dimensioned to suit machine frames and work envelopes while maintaining consistent mechanical interfaces for repeat projects. The Rack and Pinion Linear Module layout is inherently service-friendly: inspection points are accessible, alignment logic is straightforward, and the system scales well from single-axis stations to multi-axis cells. For automation builders, treating KTZ60 as an Industrial Linear Module helps reduce custom machining and shortens mechanical design cycles, because travel can be selected in fixed increments and applied across multiple machine variants with controlled BOM complexity.

High Load Capability with Predictable Operating Results

In operation, the KTZ60 focuses on output stability: 0.1 mm repeatability supports reliable part placement, tool approach, and indexing consistency across shifts. The 100 kg pull-load capacity enables the Gear Rack Linear Actuator to handle heavier fixtures or carried assemblies without forcing conservative derating in the cycle plan. The 165 mm gear lead supports controllable speed and consistent response, allowing tuning targets to be met without excessive trial-and-error. As a Rack and Pinion Linear Actuator, it fits well in PLC-controlled systems where motion timing, sensor feedback, and interlocks must remain deterministic. For end users, this Gear Rack Linear Stage delivers measurable throughput confidence, simpler troubleshooting, and reduced rework risk tied to positioning variation.

Automated Assembly Line Indexing and Transfer

In automated assembly lines, stable linear transfer is essential for maintaining takt time and minimizing station-to-station variation. The KTZ60 is deployed as a Rack and Pinion Linear Module to move pallets, part carriers, or tooling fixtures between processing zones such as fastening, pressing, or inspection. Its 0.1 mm repeatability supports consistent handoff points for vision systems and poka-yoke sensors, while the 100 kg pull-load capacity helps accommodate heavier fixtures without redesigning the transport concept. As an Industrial Linear Module, it integrates into guarded conveyor-adjacent cells through standard stroke selection (300–2500 mm in 100 mm steps), simplifying mechanical planning. In PLC workflows, the axis can be sequenced with clamps, actuators, and safety interlocks to deliver deterministic motion timing.

Robotic Workcell Tool and Part Handling Axis

In robotic cells for welding, dispensing, or machine tending, integrators often need a rigid linear axis that extends a robot’s reachable work envelope while keeping positioning consistent. The KTZ60 serves as a Gear Rack Linear Stage for tool or part movement where loads and process forces are non-trivial. Using a Gear Rack Linear Module approach, the stroke can be selected to match cell layout constraints, enabling compact footprint designs without sacrificing travel. The rack-and-gear drivetrain supports repeatable approach distances for torch positioning, bead start points, or adhesive paths, helping process qualification remain stable. As a Rack and Pinion Linear Actuator, it connects cleanly with cell controls for homing routines, sensor-based verification, and coordinated timing with robot programs and upstream/downstream material flow.

FAQ

1.Why are you choose us? KNK is a Hi-tech enterprise specializing in linear modules, linear rails, industrial manipulators, etc., integrating R&D,production and sales, "Specialized and New Enterprise"

2.What can you purchase from us? A one-stop procurement platform for automation products, including linear modules, guide rails, circular line modules, linear motors, PPU robotic arms, electric push cylinders, etc.

3.In Which Industries Can our Product be Applied? All industries of industrial automation equipment, such as 3D printing, food packaging, dispensing machines, conveying and feeding, laser equipment, industrial automation, vending machines, etc.

4.Customization Process? Consult customer service, determine parameters, communicate quotations, refine communication, confirm drawing plans, confirm production, product testing, shipping acceptance, installation guidance, after-sales service.

5.How About the Price? Because most products are customized, the final quotation is determined based on the complete description, size, material,quantity of the product you need.
