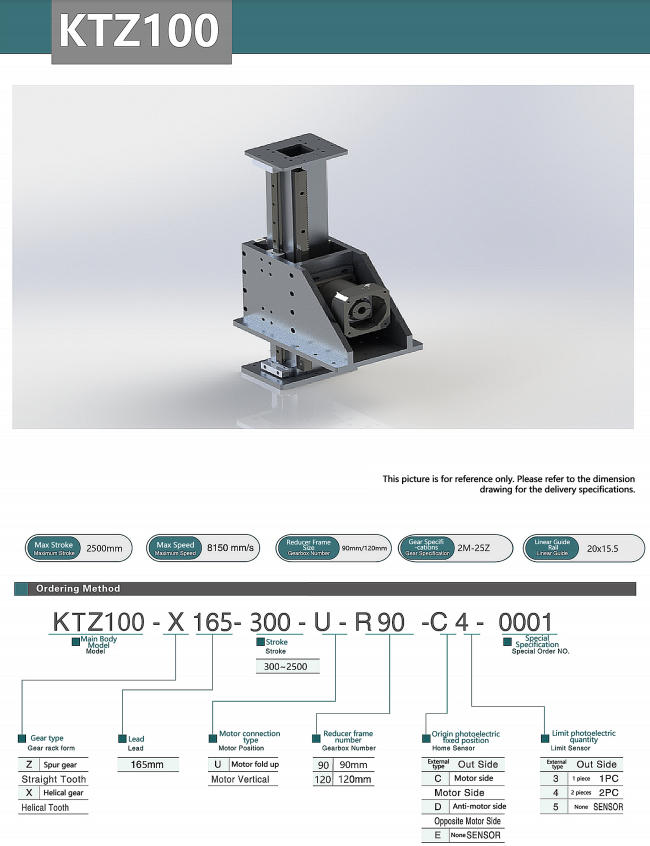

KTZ100 Gear and Rack

Product Description

Functional Positioning and Target Users

The KTZ100 Gear and Rack is a heavy-duty linear module designed to provide precise and repeatable linear motion for industrial and automated systems. Its capability to handle pull loads up to 100kg and position repeatability of 0.1mm makes it suitable for integration into equipment requiring reliable linear positioning such as automated assembly, conveyor systems, and robotic applications. The product targets OEMs and system integrators sourcing components for durable linear motion solutions.

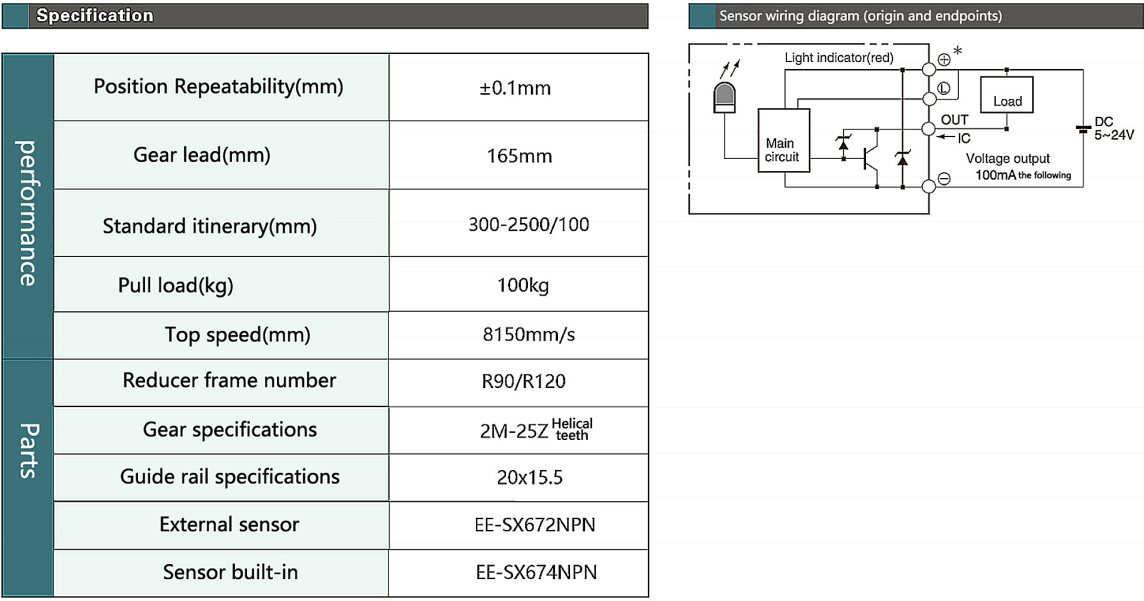

Technical Features and Source-Backed Specifications

This gear rack linear module features a gear lead of 165mm and offers a customizable standard travel range from 300mm up to 2500mm in 100mm increments, allowing adaptation to various machine sizes and travel requirements. Manufactured by KNK Technology, the module undergoes precision production and quality control to maintain accuracy and durability. Its modular design enables simplified installation and maintenance, which supports operational efficiency during equipment assembly or repair.

Application Fit and Real-World Value

In practical use, the KTZ100 fits well into demanding industrial environments where heavy loads and consistent linear motion are necessary. It is commonly employed in machine tools, packaging machinery, and robotic pick-and-place units where precise, repeatable movement is critical. This product is also suited for OEMs developing custom linear systems, offering flexibility through adjustable travel length and reliable load capacity under typical industrial operating conditions.

Procurement-Relevant Design

The KTZ100 gear rack linear module is designed with modularity that simplifies integration and maintenance, addressing common sourcing priorities such as ease of assembly and replacement. Its adjustable travel range provides customization options suitable for various project specifications, which assists buyers evaluating compatibility with existing systems or product ranges.

Operational Fit and Business Use

With a pull load capacity of 100kg, the module can handle a range of applications requiring dependable linear actuation. The product’s manufacturing by KNK Technology brings traceable quality control measures, which is beneficial for buyers focusing on consistent product standards. Packaging and delivery conditions were not detailed but are assumed standard for industrial linear modules.

Automated Assembly Line Integration

In manufacturing environments requiring precise positioning, such as automated assembly lines, the KTZ100 gear rack linear actuator provides consistent linear motion under heavy duty conditions. Its position repeatability of 0.1mm and robustness support exact placement and movement, essential for maintaining product quality during assembly. Procurement teams can specify the module’s customizable travel length to match specific line layouts or machinery dimensions.

Robotic and Packaging Machinery Applications

This rack and pinion linear module is also suited for robotic pick-and-place units and packaging machinery that demand reliable linear motion with repeatable accuracy. Its 100kg pull load capacity supports handling moderate to heavy components or packages. Buyers engaged in equipment OEM or distribution benefit from the module’s adaptable features for different automation tasks, facilitating sourcing for industrial automation projects.

FAQ

1.Why are you choose us? KNK is a Hi-tech enterprise specializing in linear modules, linear rails, industrial manipulators, etc., integrating R&D,production and sales, "Specialized and New Enterprise"

2.What can you purchase from us? A one-stop procurement platform for automation products, including linear modules, guide rails, circular line modules, linear motors, PPU robotic arms, electric push cylinders, etc.

3.In Which Industries Can our Product be Applied? All industries of industrial automation equipment, such as 3D printing, food packaging, dispensing machines, conveying and feeding, laser equipment, industrial automation, vending machines, etc.

4.Customization Process? Consult customer service, determine parameters, communicate quotations, refine communication, confirm drawing plans, confirm production, product testing, shipping acceptance, installation guidance, after-sales service.

5.How About the Price? Because most products are customized, the final quotation is determined based on the complete description, size, material,quantity of the product you need.
