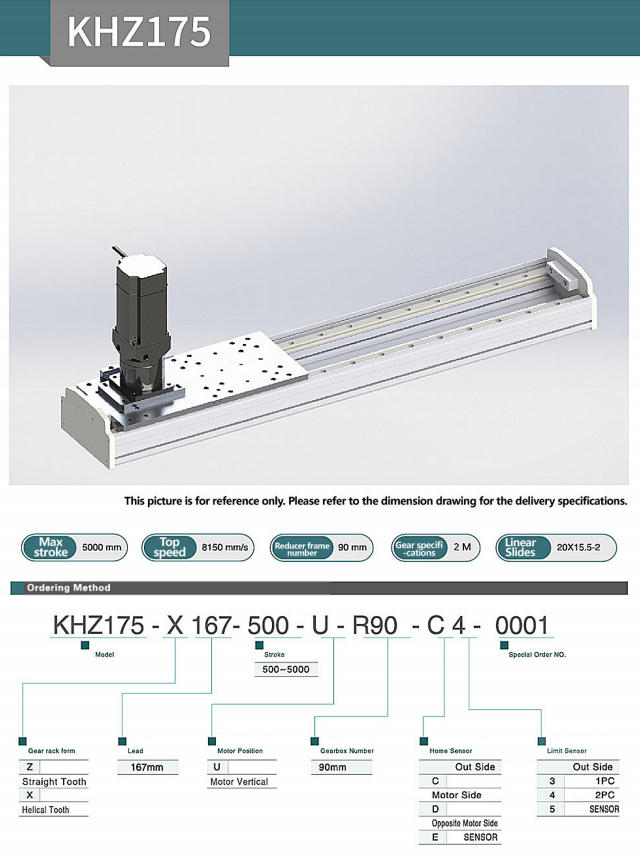

KHZ175 Gear and Rack

Product Description

Functional Positioning and Target Users

The KTZ175 gear rack linear module provides reliable linear motion suited for industrial automation requiring precise positioning and load handling. It targets users involved in automated assembly, material conveyance, or robotics who need a mechanical solution supporting consistent linear movement under moderate to heavy loads. Its design accommodates applications where stable travel lengths and repeatable positions are critical for process accuracy.

Technical Features and Specifications

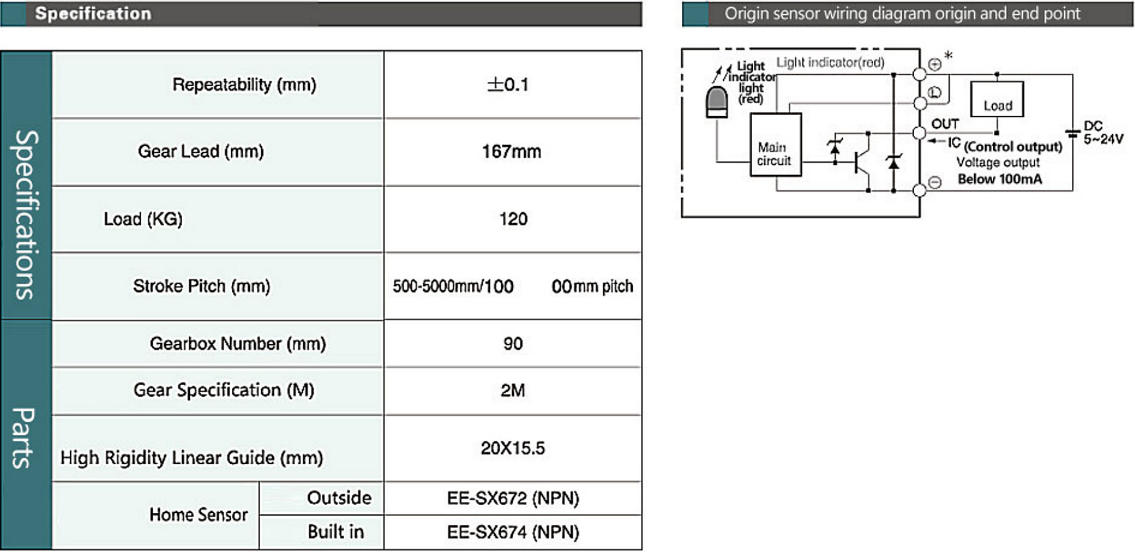

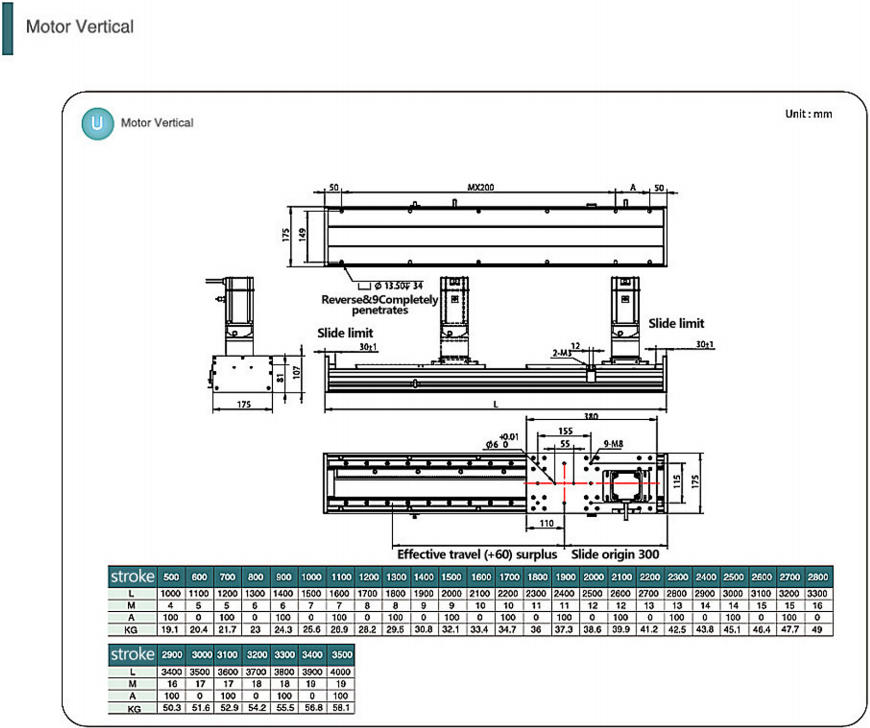

This module features a gear lead of 167mm and supports travel distances customizable in 100mm increments from 500mm to 5000mm. It handles pull loads up to 120kg while maintaining position repeatability within 0.1mm. Manufactured by KNK Technology, the KTZ175 integrates a rack and gear transmission ensuring operational stability. These specifications allow users to source a component that offers defined load capacity and travel configurations for varied automation needs.

Application Fit and Real-World Value

The KTZ175 gear rack linear module is suitable for integration into automated assembly lines, pick-and-place machines, and mechanical conveyors requiring precise linear actuation. Its capacity to support heavy loads with consistent repeatability aligns with OEM or project requirements in industrial manufacturing environments. Buyers evaluating this module can consider it for replacing conventional linear actuators where customizable mobility and load support are necessary.

Procurement-Relevant Design

The KTZ175 module’s design offers standardized travel lengths in incremental steps, facilitating easier specification matching and order precision. Its pull load capacity and positional accuracy support a range of industrial applications, making it a practical sourcing option for buyers seeking customizable gear rack linear modules. The manufacturing by KNK Technology aligns with established production practices, helpful in supply reliability considerations.

Operational Fit for OEM and Wholesale

This gear rack linear module supports OEM and ODM projects with its modular travel options and repeatability specifications. Its design suits bulk distribution where consistent product quality and predefined technical features matter. The module’s packaging and quality controls, standard for industrial linear modules from KNK Technology, contribute to managing supply chain and assembly requirements efficiently.

Automated Assembly Line Applications

In production lines requiring repeated, precise positioning of parts, the KTZ175 gear rack linear module can provide dependable linear movement with controlled travel lengths. Procurement for commercial manufacturing use benefits from the module’s defined load capacity and travel customization, meeting varied assembly machinery requirements and supporting integration with automation control systems.

Robotics and Pick-and-Place Machinery

For robotic systems involved in linear actuation tasks, selecting this gear rack linear module offers a balance of repeatability and load support. The module’s standard gear lead and travel options allow project managers and OEMs to adapt configurations based on machine size and application specifics, fitting diverse robot-assisted handling or packaging environments.

FAQ

1.Why are you choose us? KNK is a Hi-tech enterprise specializing in linear modules, linear rails, industrial manipulators, etc., integrating R&D,production and sales, "Specialized and New Enterprise"

2.What can you purchase from us? A one-stop procurement platform for automation products, including linear modules, guide rails, circular line modules, linear motors, PPU robotic arms, electric push cylinders, etc.

3.In Which Industries Can our Product be Applied? All industries of industrial automation equipment, such as 3D printing, food packaging, dispensing machines, conveying and feeding, laser equipment, industrial automation, vending machines, etc.

4.Customization Process? Consult customer service, determine parameters, communicate quotations, refine communication, confirm drawing plans, confirm production, product testing, shipping acceptance, installation guidance, after-sales service.

5.How About the Price? Because most products are customized, the final quotation is determined based on the complete description, size, material,quantity of the product you need.
