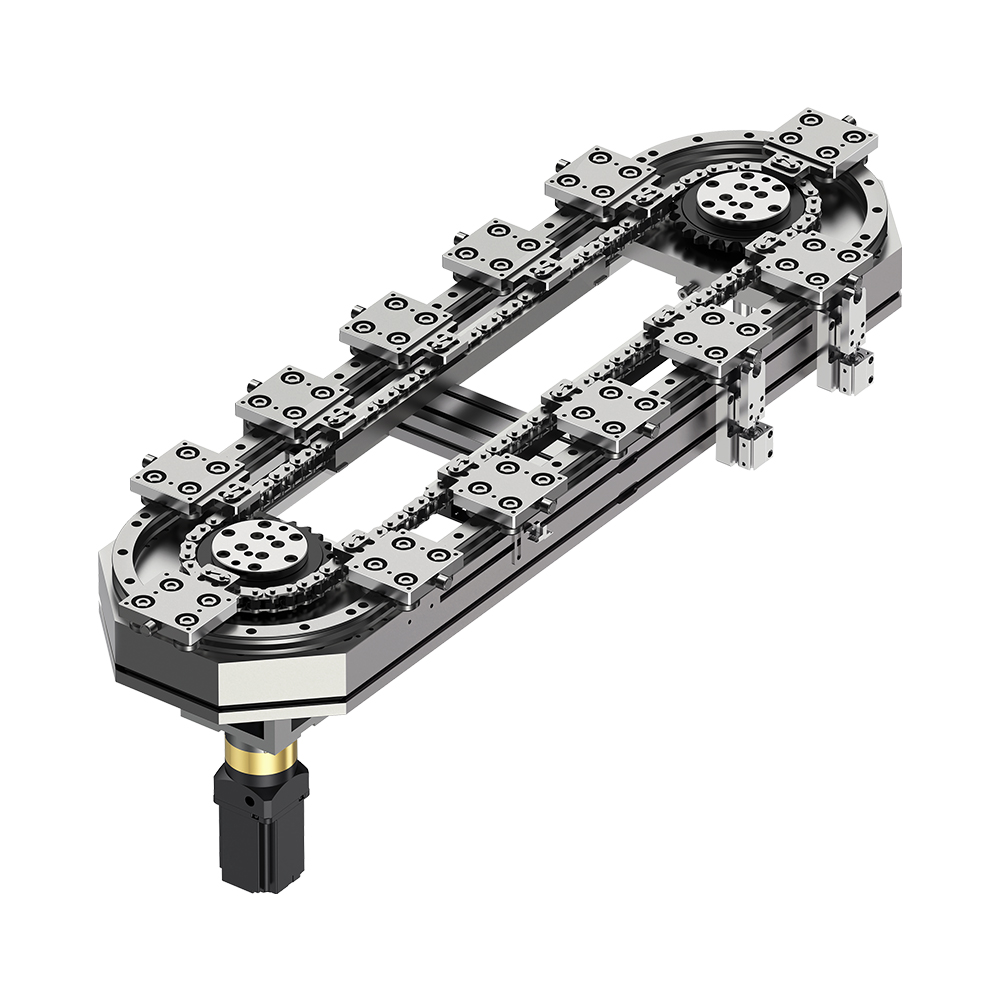

Name: T Series Elliptical Conveyor System
Brand: Linear Module_PPU Robot Arm_Linear Guide _Electric Cylinder_Precision Conveyor Systems Manufacturer_KNK Technology
Availability: InStock
Rating: 5 (1 reviews)

Description
About KNK

Functional Integration for Automated Precision Handling
The T Series Elliptical Conveyor System is engineered to combine conveying and positioning functions within a unified framework, targeting automation engineers and systems integrators requiring precise and repeatable motion control. This precision conveyor system suits applications demanding synchronized material transfer and indexing, supporting loads up to 40 kg with minimal positional deviation. Its modular design enables seamless incorporation into complex automation lines, particularly where specialized workflows rely on robust, accurate part handling facilitated by a link type indexing chain conveyor mechanism and a durable circular guide rail structure.

High-Precision Performance and Technical Specifications

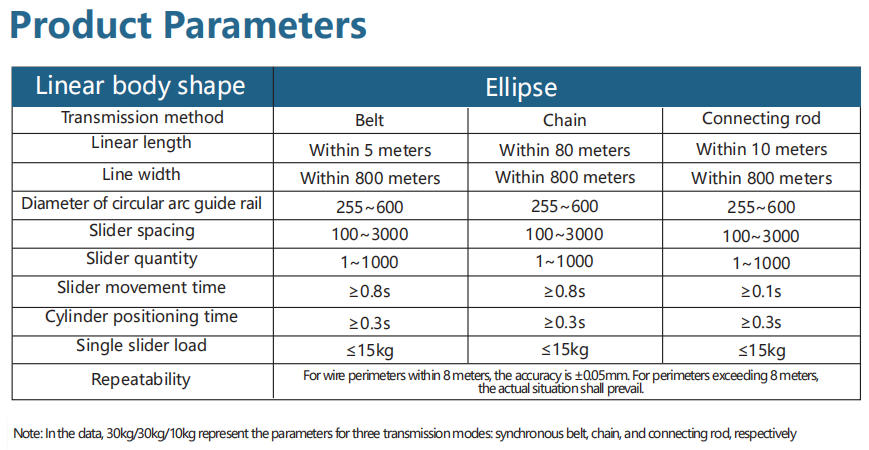

This system achieves a repeat positioning accuracy of 0.05 mm, ensuring meticulous alignment during operational cycles. Capable of speeds reaching 1000 mm/s, the T Series maintains rigid stability through its construction from high-strength materials, optimizing load capacity without compromising system reliability. The integrated precision chain conveyor manufacturers have designed the elliptical belt and chain linkage to minimize backlash and sustain consistent motion profiles. The modular architecture simplifies scalability and customization in response to specific process requirements, supporting maintenance-free operation that reduces downtime and total cost of ownership.

Industrial Applications and Operational Advantages
Ideal for industries such as electronics assembly, automotive component testing, and precision manufacturing, the T Series enhances throughput by integrating converging and positioning operations. The precision conveyor systems support test rigs requiring exacting repeatability and lines demanding synchronized movement of parts. Its compact footprint and compatibility with existing automation equipment allow for streamlined workflows. Employing a circular guide rail ensures continuous, stable guidance, facilitating high-speed cycles in environments where precision, reliability, and integration flexibility are critical for sustained productivity gains.

Product Advantages

Design Strength and Modular System Architecture
The T Series stands out due to its elliptical belt design coupled with a link type indexing chain conveyor mechanism, providing integrated conveying and positioning functionalities in a single unit. Its modular configuration allows for flexible layout adaptation, enabling custom solutions across diverse automation requirements. The inclusion of a precision circular guide rail supports smooth movement and positional consistency while facilitating quick assemblies or redesigns for evolving production needs. This design also reduces space requirements and improves system robustness by leveraging components from specialized precision chain conveyor manufacturers.

Operational Efficiency and User-Centric Performance
Users benefit from the T Series’ high-repeatability and speed capabilities, delivering precise part positioning with a tolerance of 0.05 mm at velocities up to 1000 mm/s. Its maintenance-free nature minimizes operational interruptions, increasing uptime and ROI. The system’s ergonomic design simplifies integration with control systems, enhancing usability for automation personnel. Utilization of proven precision conveyor systems technology ensures reliable performance in demanding scenarios. The optimized load handling and consistent motion translate into reduced cycle times and improved production line accuracy.

Use Scenarios

Application in Electronics Assembly Lines
Within electronics manufacturing environments, precision and speed are paramount. The T Series effectively manages component transport and positioning on circuit board assembly lines, using its accurate link type indexing chain conveyor for repeatable motion and a stable circular guide rail to reduce misalignment risks. This integration ensures each part arrives precisely aligned for subsequent assembly or testing stages. Its modular architecture enhances compatibility with automated pick-and-place systems and inspection devices, facilitating smooth workflow integration and meeting stringent quality control standards vital in high-mix electronics production.

Role in Automated Test and Calibration Systems
In automated test setups, the T Series functions as a reliable medium for positioning parts during calibration and validation routines. Its precision conveyor systems capabilities allow for consistent repeat positioning, essential for accurate measurements and functional verification. The elliptical belt and link type indexing chain conveyor format support smooth transitions between stations, while robust materials and the circular guide rail ensure operational stability. The conveyor’s integration reduces the need for secondary positioning devices, streamlining process flow and enhancing throughput in research, development, and quality assurance facilities.

FAQ

What materials are used in the T Series Elliptical Conveyor System?
The T Series Elliptical Conveyor System is built with high-strength materials designed to provide rigid, durable operation over a long service life. These materials ensure structural integrity while supporting loads of up to 40 kg with precise repeat positioning accuracy. The robust construction aligns with industry standards for precision conveyor systems.

Can the T Series conveyor be customized for specific applications?
Yes, KNK offers a full customization process for the T Series system. Customers consult our technical team to define performance parameters and design requirements. Following quote finalization and drawing confirmation, production and product testing proceed, ensuring the tailored conveyor meets exact specifications with integrated precision conveyor system features.

How is installation and maintenance handled for the elliptical conveyor?
The T Series is designed for modular, maintenance-free operation, reducing downtime and simplifying integration into existing lines. Its modular design allows quick installation and streamlined maintenance, minimizing disruption to workflows. KNK also provides installation guidance and after-sales support to ensure long-term reliable use of the link type indexing chain conveyor system.

What is the typical lead time and shipping process for orders?
After confirming the order and production plan, KNK proceeds with manufacturing the conveyor units according to customer specifications. Once product testing is complete, items are packaged and shipped following standardized protocols to protect quality during transit. KNK ensures timely delivery while maintaining the precision of the link type indexing chain conveyor components.

KNK Technology a high-tech enterprise specializing in the R D, production, sales, and service of chain oval conveyor systems, linear modules, electric cylinders, PPU cam pick and place units, gear rack linear modules, linear motor modules, and linear guides.KNK insists on the business philosophy ofcustomer-centric, market-oriented, and technology-supported.

Supports specifying logistics and packaging methods
