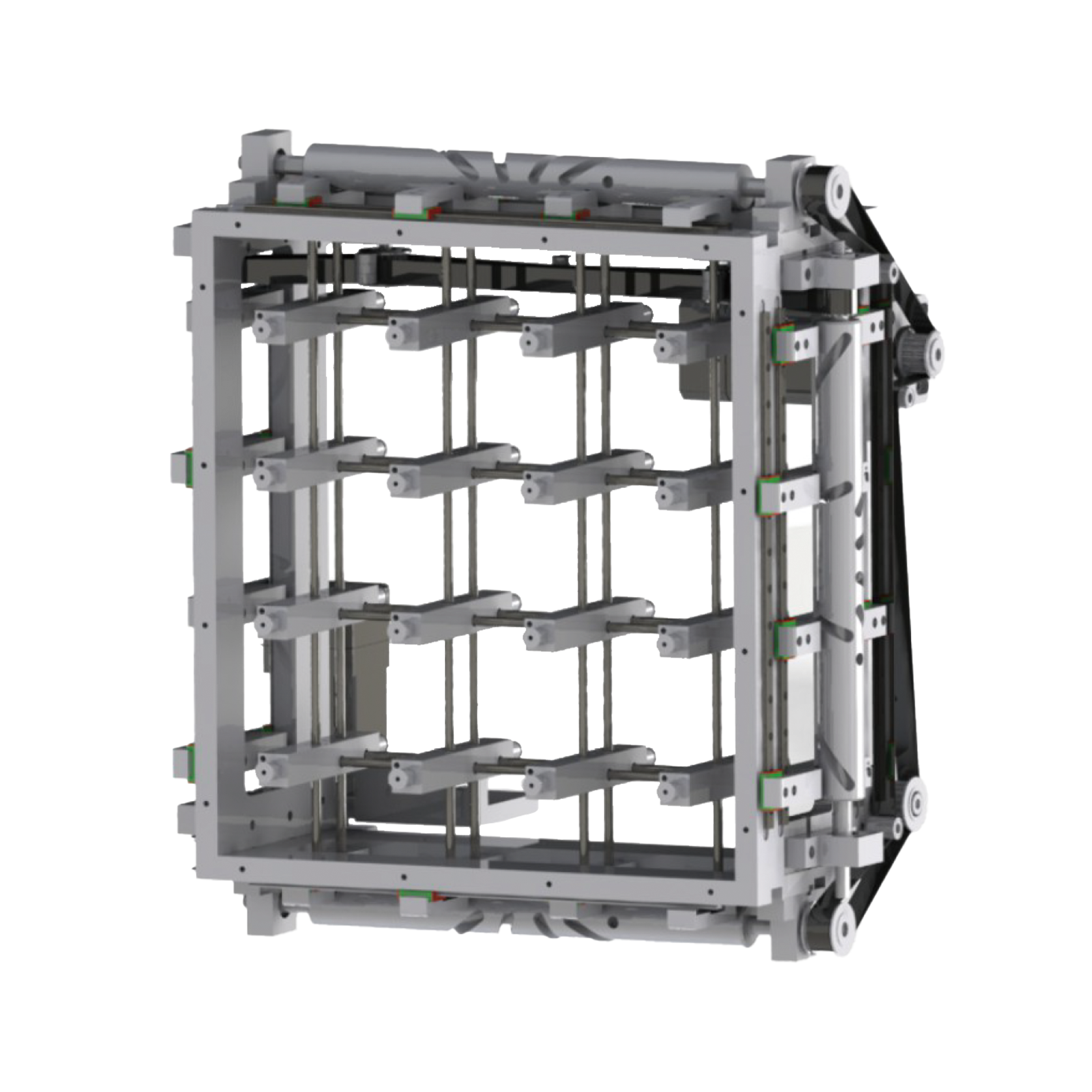

A variable pitch actuator is a motion solution designed to adjust the spacing between multiple moving elements according to specific production requirements. Unlike conventional linear actuators that normally provide a fixed movement path, a variable pitch actuator can change the relative distance between sliders, grippers, carriers, or tooling positions.
This makes variable pitch motion particularly useful for automated production lines where products need to be separated, grouped, transferred, aligned, or positioned at different intervals.
For OEM equipment manufacturers and automation integrators, the actuator can be customized according to the required pitch range, stroke, payload, speed, number of moving elements, and machine layout.
A variable pitch actuator is a mechanical motion system that allows the distance between multiple moving positions to be adjusted.
For example, an automation machine may receive products at one spacing and need to transfer them to another process with a different spacing. Instead of using separate mechanisms for each product, a variable pitch actuator can adjust the relative positions of multiple sliders or tooling points within the same motion system.
A typical system may include:
The specific configuration depends on the machine's motion requirements and production process.
The primary feature of a variable pitch actuator is its ability to change the distance between multiple moving positions.
This can help automation equipment handle products with different dimensions or adapt to different production layouts.
Typical operations include:
A variable pitch system can be designed with multiple sliders that move together while maintaining controlled relative positioning.
This is useful when several products or components must be processed simultaneously.
For example, a machine may need to pick four components at one pitch and place them at another pitch. The actuator can provide the mechanical movement required to change the spacing before the next operation.
Servo motors can be used when the application requires programmable movement and flexible pitch adjustment.
A servo-driven variable pitch actuator can potentially coordinate:
The actual positioning performance depends on the mechanical structure, motor, control system, encoder, load, and operating conditions.
In automated production, pitch adjustment often needs to take place without significantly reducing production efficiency.
A suitable variable pitch actuator can be designed for fast spacing adjustment between process steps.
This is particularly useful for high-cycle applications such as:
Different machines require different pitch ranges.
A custom actuator can be designed according to the customer's required:
This makes a custom variable pitch actuator more suitable for OEM equipment than a fixed standard mechanism in applications with special spacing requirements.
Space is often limited inside automated equipment.
A variable pitch mechanism can combine several positioning functions into one integrated motion assembly, potentially reducing the number of independent actuators and mechanical components required.
The final structure can be adapted to the machine's available installation space and mounting requirements.
The two systems serve different motion requirements.
| Feature | Conventional Linear Actuator | Variable Pitch Actuator |
|---|---|---|
| Linear movement | Yes | Yes |
| Single-position movement | Common | Possible |
| Multiple sliders | Optional | Common |
| Adjustable spacing | Limited | Main function |
| Product grouping | Possible with additional mechanisms | Suitable |
| Pitch conversion | Usually requires additional mechanism | Designed for pitch adjustment |
| Multi-product handling | Possible | Particularly suitable |
| OEM customization | Available | Highly useful |
A conventional linear actuator is generally suitable when one load needs to move along a fixed path.
A variable pitch actuator becomes more useful when multiple products, tools, or carriers must change their relative spacing during the production process.
Pick-and-place systems often need to transfer multiple products between stations with different spacing.
For example, products may arrive in a closely spaced arrangement on a conveyor but need to be placed into packaging cavities with a larger pitch.
A variable pitch actuator can provide the required spacing adjustment between the pick and place positions.
Packaging machinery is one of the common application areas for variable pitch mechanisms.
Products may need to be:
The pitch can be adjusted according to the package configuration and downstream process.
Electronic components can have relatively small dimensions and may need to be handled in groups.
A variable pitch actuator can move multiple components while adjusting their spacing for:
The actuator can be integrated with grippers, vacuum tooling, vision systems, and other automation components.
Inspection systems may require several products to be positioned at a specific distance from cameras or sensors.
A variable pitch mechanism can help align multiple products with inspection positions while maintaining synchronized movement.
Applications can include:
In sorting equipment, products may enter the system at one spacing but need to be distributed into different positions.
Variable pitch motion can help create controlled spacing before the products are transferred to another conveyor, processing station, or packaging system.
In multi-station assembly equipment, components may need to move between stations with different pitch requirements.
A custom variable pitch actuator can be integrated into the transfer mechanism to adjust component spacing without requiring separate positioning systems for every product.
Precision handling equipment may require multiple components to be moved simultaneously while maintaining controlled relative positions.
For these applications, the mechanical structure, guide system, drive mechanism, encoder, and control system should be selected as a complete motion solution.
For OEM customers, variable pitch requirements can vary considerably from one machine to another.
A custom design can be developed around parameters such as:
Number of Sliders → Product Size → Initial Pitch → Final Pitch → Pitch Range → Stroke → Payload → Speed → Accuracy → Installation Space
For example, an OEM customer may require six sliders to move simultaneously while changing from a small input pitch to a larger output pitch. Another machine may require multiple tooling heads to maintain synchronized movement while independently adjusting their spacing.
These requirements are difficult to address effectively with a one-size-fits-all actuator.
A customized variable pitch actuator can instead be designed around the actual production process.
Before selecting or designing a variable pitch actuator, engineers should define the following parameters:
Providing these parameters allows the manufacturer to evaluate the appropriate mechanical configuration and drive technology.
For automation equipment manufacturers, a variable pitch actuator is not simply a linear movement component. It can serve as a pitch conversion and synchronized positioning mechanism within the complete machine.
Depending on the application, customization may include:
This makes variable pitch technology suitable for customized production equipment, especially where multiple products must be processed simultaneously at different spacing intervals.
