Modern automated production lines often require more than simple product transportation. When products need to move through multiple workstations in a controlled sequence while maintaining stable positioning, a Custom Elliptical Chain Circular Guide Conveyor Line can provide a practical solution.
Unlike conventional straight conveyors, an elliptical chain conveyor can create a continuous closed-loop path. Products, pallets, or workpieces can circulate between multiple processing stations while the conveyor maintains a defined movement route.
For OEM machine builders and automation integrators, the conveyor layout, chain length, number of carriers, payload, speed, positioning requirements, and workstation configuration can be customized according to the production process.

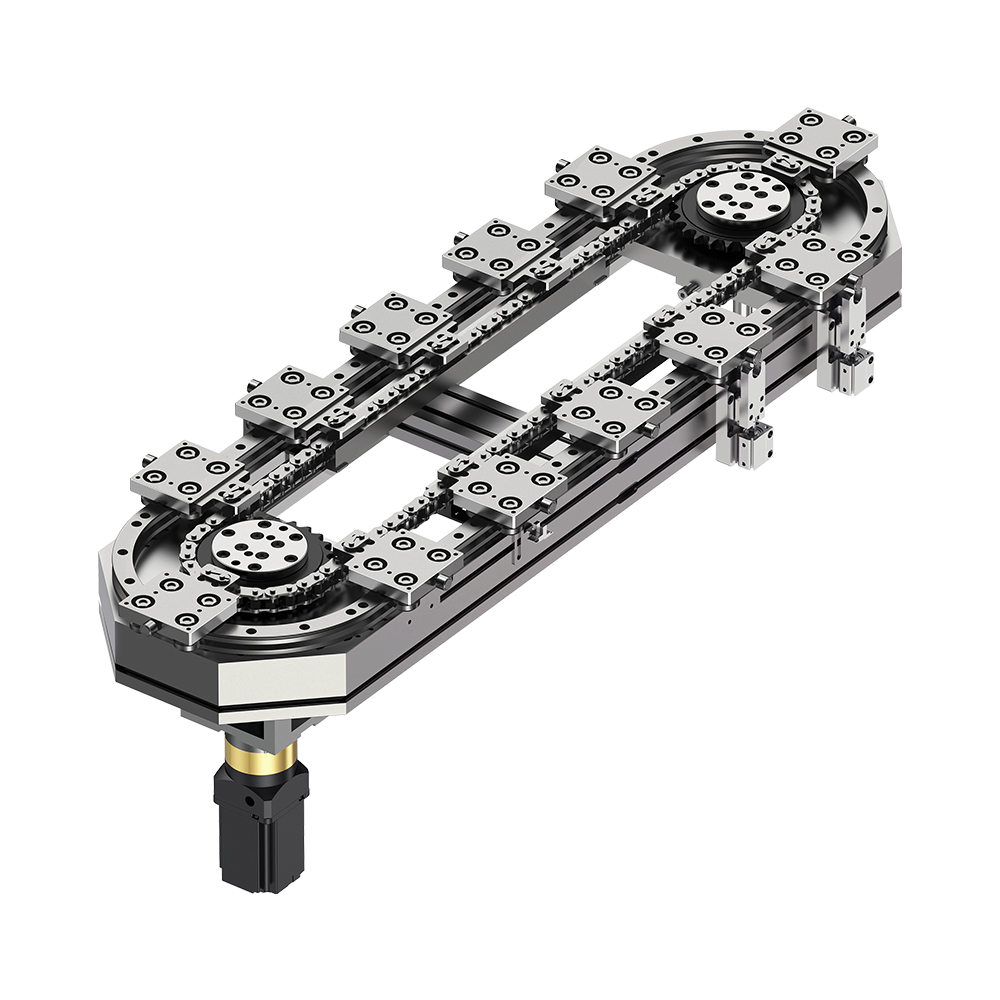

An elliptical chain circular guide conveyor is a continuous conveyor system that uses a chain-driven mechanism and a guided track to transport carriers or workpieces around an elliptical or closed-loop path.
A typical system may include:
The closed-loop structure allows multiple workpieces to move through different stations without requiring separate conveyors for each transfer section.
The operating principle is based on continuous chain movement.
A simplified process is:
Loading → Transfer → Processing → Inspection → Assembly → Testing → Unloading
The chain continuously moves the carriers around the elliptical path.
At specific stations, the system can stop or position individual carriers for automated operations.
Depending on the machine design, the conveyor can be integrated with:
This makes an elliptical conveyor line suitable for multi-station manufacturing processes.
Standard conveyor systems are not always suitable for specialized production equipment.
A custom elliptical chain conveyor can be designed around the customer's actual production requirements.
Key parameters may include:
This allows the conveyor to become part of the automation system rather than simply functioning as a standalone transportation device.
An elliptical conveyor creates a continuous circulation path.
This can simplify material flow between multiple production stations.
For example:
Station 1 → Station 2 → Station 3 → Station 4 → Station 5 → Return
The carrier can return to the loading station after completing the production cycle.
A single conveyor line can connect multiple automated processes.
Potential stations include:
This can reduce the need for multiple independent transfer systems.
The circular guide structure helps control the movement of carriers around curves and straight sections.
For precision applications, the guide system can be designed to support stable movement and repeatable positioning.
This is particularly important when automated tools need to interact with products at predefined locations.
The elliptical layout can be adapted to different production environments.
Depending on the machine design, the conveyor can be configured with:
This makes the system suitable for customized production lines.
A major difference between a conventional transportation conveyor and a precision chain conveyor system is the need for controlled positioning.
When a carrier reaches an assembly or inspection station, it may need to stop at a defined position.
The overall positioning performance depends on factors such as:
For demanding applications, an additional mechanical positioning mechanism can be integrated to improve station-to-station positioning.
Assembly automation is one of the key applications for an elliptical chain conveyor.
A typical production process could be:
Component Loading → Assembly → Fastening → Inspection → Testing → Unloading
Each carrier can hold a product or fixture and move through the required workstations.
At each station, the conveyor can coordinate with automated equipment.
Potential applications include:
Inspection systems often require products to stop at consistent positions.
A custom circular guide conveyor can transport products through several inspection stations.
For example:
Vision cameras, sensors, and testing equipment can be integrated into the conveyor line.
An elliptical conveyor can also work with robotic pick-and-place systems.
Robots can be installed around the conveyor to:
The conveyor provides a continuous path while the robots perform specific operations at designated stations.
The carrier is an important part of a customized elliptical conveyor system.
Depending on the application, carriers can be designed according to:
A customized carrier allows the conveyor to handle products with irregular shapes or specialized fixtures.
For OEM projects, the carrier and conveyor should ideally be designed as one integrated system.
The required payload and speed directly affect the conveyor design.
The total moving load may include:
The drive system should be selected according to the total load and operating conditions.
The required conveyor speed depends on:
For example, a high-speed transfer system may prioritize continuous movement, while an assembly line may prioritize stable positioning at each workstation.
A custom elliptical conveyor line can be designed according to the available factory space.
Important layout parameters include:
Determines the total travel distance and available workstation positions.
Determines how much floor space the conveyor occupies.
Provides space for automated processing stations.
Allows the carriers to change direction and return to the next straight section.
Determines the distance between adjacent carriers.
The layout should be designed around the complete production process rather than the conveyor alone.
| Feature | Elliptical Chain Conveyor | Conventional Belt Conveyor |
|---|---|---|
| Layout | Closed-loop | Usually straight |
| Carrier Control | High | Application dependent |
| Multi-Station Processing | Excellent | Good |
| Product Positioning | Suitable for precision applications | Usually transport focused |
| Custom Carriers | Yes | Possible |
| Continuous Circulation | Yes | Depends on configuration |
| Automation Integration | Excellent | Good |
| OEM Customization | High | Moderate to High |
A conventional belt conveyor is often sufficient for basic product transportation. A custom elliptical chain conveyor is more suitable when the production line requires controlled carriers, multiple processing stations, and a closed-loop workflow.
The drive system should be selected according to the required payload, speed, operating cycle, and layout.
A typical system can include:
Servo-driven configurations can provide more flexible control when the production process requires coordinated movement and positioning.
Custom elliptical chain conveyor systems can be used in:
When selecting a custom conveyor manufacturer, OEM customers should evaluate both the conveyor components and engineering capabilities.
Important factors include:
The supplier should understand:
The conveyor may need to communicate with:
A suitable supplier should be able to customize:
Before requesting a quotation, OEM customers should prepare:
With these details, the manufacturer can evaluate the appropriate custom elliptical chain conveyor line configuration.
A Custom Elliptical Chain Circular Guide Conveyor Line combines continuous transportation, guided carrier movement, and multi-station automation in a closed-loop conveyor structure.
Compared with a basic transportation conveyor, it can provide greater flexibility for applications requiring custom carriers, multiple workstations, controlled product flow, and repeatable positioning.
By customizing the layout, chain, guide system, carrier, pitch, payload, speed, drive system, and positioning mechanism, the conveyor can be designed around the customer's actual production process.
For OEM machine builders and automation integrators, an elliptical chain conveyor can be integrated with assembly equipment, robots, inspection systems, testing stations, dispensing systems, and pick-and-place units.
Choosing an experienced custom elliptical conveyor manufacturer is therefore important for projects where the conveyor needs to function as part of a complete automated production system.
