In modern industrial automation, achieving fast and accurate positioning in two dimensions is essential for applications such as pick and place, dispensing, inspection, and light-duty material handling. The XY Axis Belt Drive Linear Motion Module is a highly efficient and cost-effective solution designed to provide smooth, stable, and synchronized motion in both X and Y directions.
Compared with ball screw or rack and pinion systems, belt drive linear modules offer higher speed, lower noise, and reduced maintenance, making them ideal for high-speed automation tasks.
Belt drive systems can reach speeds up to several meters per second, making them suitable for fast pick-and-place and transfer applications where cycle time is critical.
Precision linear guides and optimized belt tension ensure smooth acceleration and deceleration, reducing vibration and improving positioning repeatability.
Compared with ball screw stages, belt driven linear stages support long stroke lengths without sacrificing speed, making them perfect for large working areas.
With simpler mechanical structure and lower manufacturing cost, XY belt drive linear modules provide excellent performance-to-price ratio for OEM equipment builders.
Standard motor mounting interfaces, cable management options, and customizable mounting plates make integration into robotic cells and automation equipment quick and efficient.

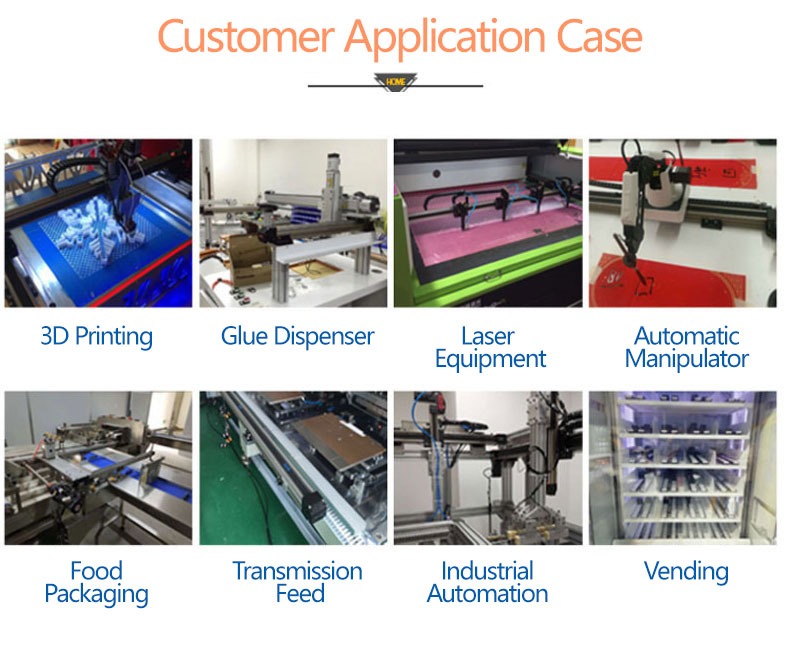

The versatility of XY belt driven linear stages makes them widely used in:
Pick and place machines
Dispensing and gluing systems
Laser marking and engraving platforms
Vision inspection systems
PCB handling equipment
Packaging and labeling automation
Light-duty palletizing and sorting systems
They are especially suitable for industries such as electronics manufacturing, medical device assembly, packaging, and laboratory automation.
A professional XY axis belt drive linear motion module supplier can provide multiple customization options to meet different project requirements:
Stroke length: customizable according to working area
Payload capacity: from light to medium loads

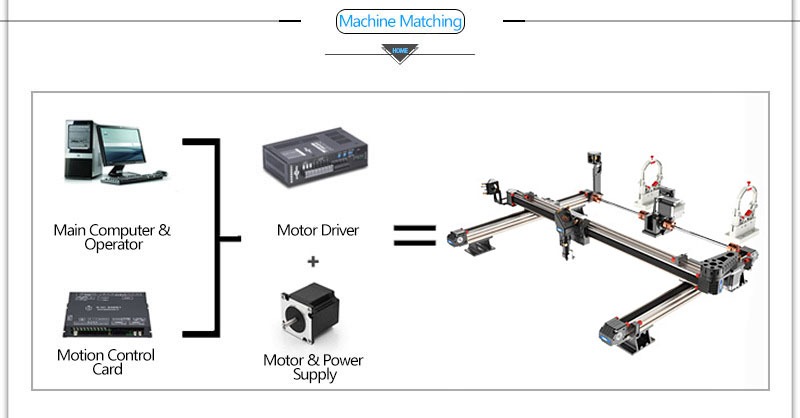

Drive motors: stepper motor or servo motor compatible
Positioning accuracy: optimized through guide selection and belt tensioning
Aluminum profile or fully enclosed structure for clean environments
Optional covers and dust protection for long-term reliability
These flexible configurations allow engineers to design highly optimized automation systems with minimal development time.
If your application requires fast positioning, long travel distance, moderate load capacity, and budget control, the XY axis belt drive linear motion module is an ideal choice. It combines performance, reliability, and affordability in a compact design, helping manufacturers improve productivity while reducing equipment costs.
Whether you are building a custom automation machine or upgrading existing production lines, belt driven XY gantry systems provide the flexibility and scalability needed for modern smart manufacturing.
Choosing a reliable manufacturer ensures stable quality, precise assembly, and long-term technical support. A professional supplier can also provide:
CAD drawings and 3D models
Motion selection guidance
Application engineering support
Fast delivery and global shipping
This helps reduce development risks and shortens your project timeline.
